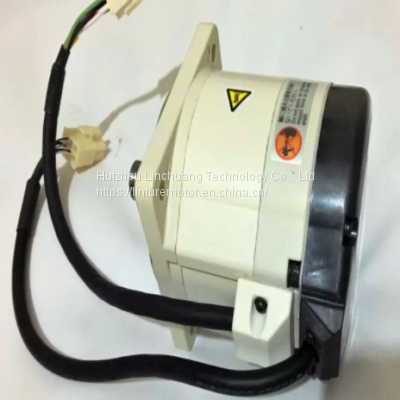

R88M-GP40030H-B-Z OMRON Electric AC Servo Energy Saving Motor

Product Details

Product Description

Product Description
Brand:Model:Origin:Voltage:Power:Frequency:High Light:

OMRON	R88M-GP40030H-B-Z
China	200V
200W	3000rpm
ewing machine servo motor,electric servo motor

AC Servo motor With INC Encoder Flat-Style OMRON R88M-GP40030H-B-Z 400W , 200 VAC Without Key / With Brake , 3000rpm
3,000-r/min Flat Servomotors
Model (R88M-)100 VAC200 VACGP10030LGP20030LGP40030LGP10030HGP20030HGP40030HItemUnitGP10030SGP20030SGP40030SGP10030TGP20030TGP40030TRated output *1WRated torque *1N·mRated rotation speedr/minMax. momentary rotation
speedr/minMax. momentary torque *1N·mRated current *1A (rms)Max. momentary current
*1A (rms)Rotor inertiakg·m2
(GD2/4)Applicable load inertia---Torque constant *1N·m/APower rate *1kW/sMechanical time constantmsElectrical time constantmsAllowable radial load *3NAllowable thrust load *3NWeightWithout brakekgWith brakekgRadiation shield dimensions (material)Applicable Servo Drives (R88D-)Brake
spec-
ifica-
tionsBrake inertiakg·m2
(GD2/4)Excitation voltage
*4VPower
consumption
(at 20 °C)WCurrent
consumption
(at 20 °C)AStatic friction
torqueN·mAttraction time
*5msRelease time *5msBacklash
Allowable work per
brakingJAllowable total workJAllowable angular
accelerationrad/s2Brake life---Rating---Insulation grade---

100	200	400	100	200	400
0.32	0.64	1.3	0.32	0.64	1.3
3000
5000		4500	5000
0.84	1.8	3.6	0.86	1.8	3.65
1.6	2.5	4.4	1	1.6	2.5
4.9	7.5	13.3	3.1	4.9	7.5
1.0 × 10-5	3.5 × 10-5	6.5 × 10-5	1.0 × 10-5	3.5 × 10-5	6.4 × 10-5
20 times the rotor inertia max. *2
0.21	0.27	0.3	0.34	0.42	0.54
10.2	11.7	26.0	10.2	11.5	25.5
0.87	0.75	0.55	1.05	0.81	0.59
3.4	6.7	6.7	2.9	5.6	6.6
68	245	245	68	245	245
58	98	98	58	98	98
Approx. 0.7	Approx. 1.3	Approx. 1.8	Approx. 0.7	Approx. 1.3	Approx. 1.8
Approx. 0.9	Approx. 2	Approx. 2.5	Approx. 0.9	Approx. 2	Approx. 2.5
130 × 120 × t10 (AI)	170 × 160 × t12 (AI)		130 × 120 × t10 (AI)	170 × 160 × t12 (AI)
GT01L	GT02L	GT04L	GT01H	GT02H	GT04H
3 × 10-6	9 × 10-6		3 × 10-6	9 × 10-6
24 VDC ± 10%
7	10		7	10
0.29	0.41		0.29	0.41
0.29 min.			0.29 min.	1.27 min.
50 max.			50 max.	60 max.
15 max.
± 1 °
137	196		137	196
44.1 × 103	147 × 103		44.1 × 103	147 × 103
10,000 max. (Speed of 900 r/min or more must not be changed in less than 10 ms)
10,000,000 operations min.
Continuous			Continuous
Type F
