Flat Plate Solar Panel Good Price and Quality Pressurized Solar Water Heater

Product Description

Flat Plate Solar Panel Good Price and Quality Pressurized Solar Water Heater
Product Description Sola Solar Pump free solar water heater is Open water tank for heat storage, closed coil for heat exchange and water intake. Sola Solar 20 second rapid heat exchange technology is adopted. The hot water is ready to use, and the water quality is fresh. The hot water pressure comes from the municipal cold water pressure, which matches with the cold water. It is simple to adjust the water temperature. The pressure is surging, the water volume is sufficient, and the use experience is good.
Our Advantages No.1
The end cover of the solar water tank adopts flange connection, which can be opened and maintained at any time, making it safer and more convenient to use.
No.2
The solar energy solar heater adopts a modular design, and the water tank can be expanded to meet the needs of customers with large water consumption and many water usage points.
No.3
The rapid heat exchange technology developed by Sola Solar, cold water flows through the stainless steel bellows heat exchanger for 20 seconds to quickly turn into hot water. The water quality is fresh, and it can be used as kitchen water.

Product Parameters

Product name	240L Flat Panel Solar Water Heater
Model 1 (Non-freeze 0ºC )	PFSLP-240/4.0
Model 2 (Antifreeze -10ºC )	PFSLP-240/4.0/-10
Model 3 (Antifreeze -20ºC )	PFSLP-240/4.0/-20
Types of solar water heaters	Pressurized
Collector	Non freeze / Antifreeze Flat Plate Collector
Absorber surface	Whole board blue film
Core runner	copper pipe
Collector Specifications	1000*2000*80mm
Number of collectors	2 pieces
Frame material	6063-T5 aluminum alloy
Inner tank material	0.5mm SUS304 stainless steel
Inner tank diameter	Φ380mm
Outer tank material	0.4mm color galvanized steel plate
Outer tank size	Φ480mm (round type)
Insulation material	50mm flame retardant polyurethane foam
Heat exchanger Material	304 stainless steel, 0.3mm thickness, Φ25-32mm diameter, 8 bar pressure.
Cold/hot water port connection	DN20/DN25
Product Weight	132 kg
Requirements for roof loads	100kg/m²
Aperture area	4.0 m²
Water tank capacity	240L
Weight full	370kg
Product Size	Length A (mm) 2355
	Width B (mm) 2678
collector inclination	5°~30°
Min. outdoor temperature	0ºC, -10ºC and -20 ºC
Electric heating (optional)	220V50Hz/110V60Hz, 1500W

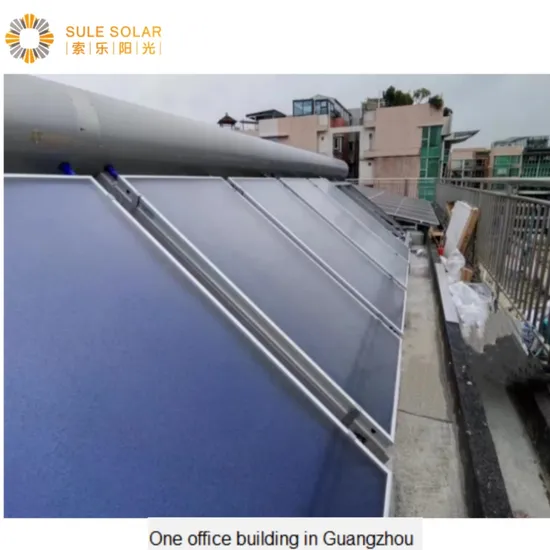

Project case presentation:
1. Beijing Nantong Medical

In 2018, Beijing Haidian, for 3000 people.
Pump free solar collector:96 Sets (403.2 m² in total)	Storage capacity:60ºC hot water 30000 liters in total.
Auxiliary heat source: 4 sets gas boiler	Energy saving:331772 kWh per day.

2. Beijing University of Posts and Telecommunications

In 2015, Beijing Changping project for 800 students
Pump free solar collector:1057 Sets (44394 m² in total)	Storage capacity:60ºC hot water 32000 liters in total,
Auxiliary heat source: 8 sets gas boiler	Energy saving: 476575 kWh per day.

3. Beijing Daxing Airport South Airlines dormitory

In 2019, Beijing Daxing, for 1200 people.
Pump free solar collector:600 Sets (2520 m² in total)	Storage capacity:60ºC hot water 45000 liters in total.
Auxiliary heat source: 32 sets gas boiler	Energy saving:270520 kWh per day.

4. Ivorian Elite school

In 2019, Cote d'Ivoire Country, for 1000 students
Pump free solar collector:101 Sets (404 m² in total)	Storage capacity:60ºC hot water 24240 liters in total.
Auxiliary heat source: 15 sets Positive displacement electric heater	Energy saving: 45086 kWh per day.

5. Nanjing Yuanbo Garden Marriott Hotel

In 2021, Nanjing city, for 8000 people.
Pump free solar collector:115 Sets (460 m² in total)	Storage capacity:60ºC hot water 27600 liters in total.
Auxiliary heat source: 1 set of Municipal heat exchange station.	Energy saving: 51802 kWh per day.

6. YanDong Microelectronics Technology Co., Ltd

In 2019, Beijing city, for 322 people.
Pump free solar collector: 82 Sets (328 m² in total)	Storage capacity:60ºC hot water 24600 liters in total.
Auxiliary heat source: 1 set of Municipal heat exchange station.	Energy saving: 36971 kWh per day.

7. Beijing Central Academy of Drama

In 2014, Beijing Changping project for 1200 students
Pump free solar collector:150 Sets (630 m² in total)	Storage capacity:60ºC hot water 45000 liters in total
Auxiliary heat source: 6 sets electric water heater	Energy saving: 45087 kWh per day.

8. China Aviation Oil (Beijing) Aviation Oil New Airport Comprehensive Dispatching Center

In 2019, Beijing Changping project for 78 people
Pump free solar collector: 92 Sets (328 m² in total)	Storage capacity:60ºC hot water 34960 liters in total
Auxiliary heat source: 3 sets electric water heater	Energy saving: 41480 kWh per day.

Company Profile
FAQ 1. What can you buy from us?
Solar Water Heater, Solar water system. Solar collector.
2. What is your Delivery Time?
LCL order/Sample order: 3-7 days.
Full container order:10-15 days.
3. What is your warranty?
3 years after delivery;
4. Can you accept OEM?
YES. will do OEM Based on your requirements.
5. What is your MOQ?
1 set.
6. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
7. What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Chinese.
