80L Mini No Pressure Black Chrome Flat Panel Passitive Solar Water Heater

Product Description

Product Description compact non-pressurized flat plate solar water heater is a type of passitive solar water heating system,The tank is above the flat plate solar collector , they are integrative with a frame for support them as unit. The flat plate solar collector transfer the heat to tank by natural gravity. Fluid (water ) from inlet is heated and become lighter density compare to non-heated fluid, this lighter density will go up to the outlet and heavier fluid will go down to inlet of collector . This thermosyphone priciple continue to happen until sun down .
Our passive solar water heating adopts thermosiphon way for water circulation, flat plate solar collectors get solar power from sun by absorbing core board which coating with blue film and transfer the hot water by thermosiphon way to exchange the colder water in tank.Here the tank is pressurized container. So system is close loop for a fast heat exchange and less heat loose compare to open loop passive solar water heating.

Components:
1. Storage tank :non-pressurized 1pcs
2.Flat plate solar collector ,size 2000X1000X80mm ,1pcs
3.Bracket for hold tank and flat plate solar collector ,1pcs
4. Optional ,fittings for plumbing use. Flexible pipe and fittings for connect pipe to tank and collector, 1 lot
Advantage of our flat plate pressurized solar water heater
1.unpressurize solar water heater is economic design.
2. Easy for installation with flat plate solar collector
3.Mini solar water heater suitable for 1-2 persons
4.Frame is multi-functional design for both flat and pitched roof
7.Flat plate solar collector : main absorbing core with whole aluminum board with blue titanium coating imported from Germany;main flow passagers is made in high quality TP copper;Glass in tempered with high absorbing and low reflecting feature. Back and surround are covered by fiber glass insolation; case are in strong alumium alloy assemble as one unit not reviet type,even back steel are in aluminum to make a top quality.
We pay double attention on delicate producing of our passive solar water heating.
1. Tank in full water capacity as called
2. Flat panel solar collector with blue film absorbing board lead to high heat efficiency
3. Flat panel solar collector case and back side steel are all in aluminum alloy ,anodized for long lifetime
4. All sealing parts are EPDM material,UV proof and high temperature proof.
5. Tank heat preservation foam in polyurethane ,long preservation time for more than 3days.
6 Inner tank steel is SUS304-2B food grade stainless steel, thickness 0.5mm, thicker than market standard for long life time and high pressure.
7. Stainless steel protection welding by arc-argon is applied for all fittings.
8 Big Flange Screws for the tank and bracket connection are used to protect the tank outer material .
9. Intelligent Controller and electric heater are available

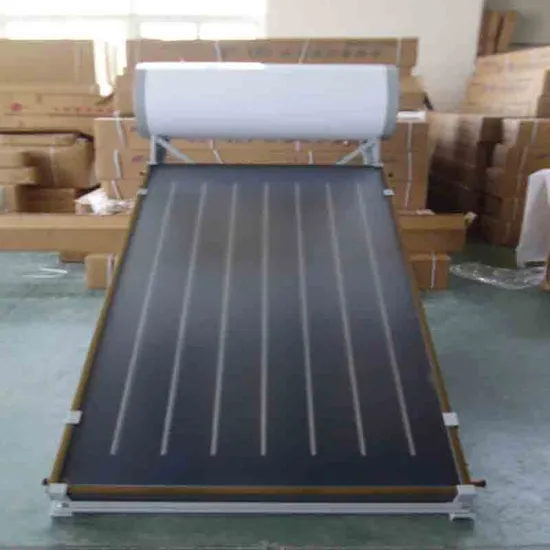

Detailed PhotosProducts photos for display
Product ParametersSpecification:

Tank	Inner tank	SUS304-2B food grade,diameter 360mm
	Out tank	high quality white color steel ,diameter 460mm
	insulation	high pressure foaming polyuranth 50mm
	water inlet&outlet	1/2'' male
	water circulate inlet&outlet	3/4'' male
	air vent	1/2''
	Optional Accessory	electric heater,assistant filling tank, controller
Flat plate solar collector	cover sheet	Texture tempered glass 3.2mm
	coating	:black chrome ,option Blue Titanium
	absorber plate	0.3mm aluminum alloy
	header tube	All copper T2 ,2pcs
	riser tube	All copper T2 ,7pcs
	Welding	Utrasonic
	Insulation	polyster cotton
	casing	Aluminum alloy with back steel color steel
	Size (mm)	2000*1000*80
Bracket	type	flat and slop roof multi-fuction use
	material	gavanized still wtih powder coating

Packaging & Shipping
Tank ,frame,flat plate collector with cartons.
