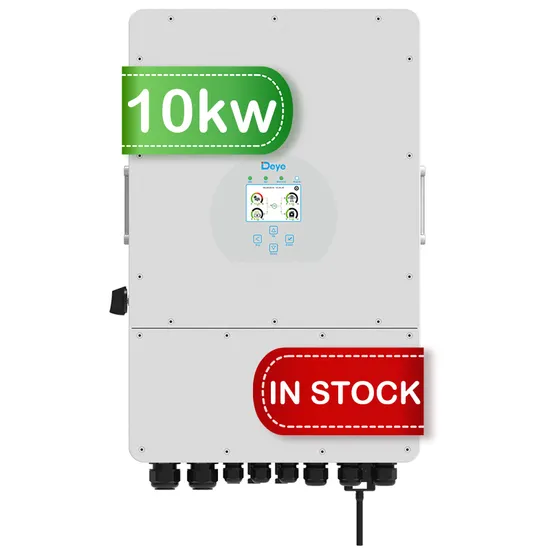

Hot Sale Sun-5K/6K/8K/10K/12K/14K/16K-Sg02lp1-EU-Am3 6kw 8kw 10kw Solar Power Deye Hybrid Inverter

Product Description

HOT SALE IN STOCK SUN-5K/6K/8K/10K/12K/14K/16K-SG02LP1-EU-AM3 6KW 8KW 10KW Solar Power Deye Hybrid Inverter

What is Hybrid Inverter?
Hybrid Solar Energy System Also Named On&Off Grid Solar Energy System. With the feature and function of both on grid and off grid solar energy systems. If you have a set of hybrid solar energy system, you could use electricity from solar panels in the daytime when is sunny, you could use electricity stored in a battery bank in the evening or on rainy days,and you also can sell extra electricity to the grid.

Product Description

Product Parameters

Model	SUN-8K-SG01LP1-EU	SUN-10K-SG02LP1-EU-AM3	SUN-12K-SG02LP1-EU-AM3
Battery Input Data
Battery Type	Lithium Ion/Lead-acid
Battery Voltage Range(V)	40V-60V
Max. Charging Currect(A)	190	220	250
Max. Discharging Currect(A)	190	220	250
Charging Strategy for li-ion Battery	Self-adaption to BMS
PV String Input Data
Max. PV Input Power(W)	10400	13000	15600
Max. PV Input Voltage Power(V)	500
Start-up Voltage(V)	125
MPPT Voltage Range(V)	150-425
Rated PV Input Voltage(V)	370
Max. Operating PV Input Currect(A)	26+26	26+26+26	26+26+26
Max. Input Short-Circurt Currect(A)	44+44	44+44+44	44+44+44
NO. of MPP Trackers/NO. of Strings per MPP Tracker	2/2+2	3/2+2+2	3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power(W)	8000	10000	12000
Max. AC Input/Output Apparent Power(VA)	8800	11000	13200
Rated AC Input/Output Power(A)	36.4/34.8	45.5/43.5	54.6/52.2
Max. AC Input/Output Power(A)	40/38.3	50/47.9	60/57.4
Max. Continuous AC Passthrough(grid to load)(A)	50	60	60
Peak Power(off-grid)(W)	2 times of rated power,10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range(V)	220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55,60/55-65
Grid Connection Form	L+N+PE
Total Currect Harmonic DIstortion THDi	<3%(of nominal power)
DC Injection Currect	<0.5%ln
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	>99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection,AC Output Overcurrect Protection,AC Output Overvoltage Protection,AC Output Short Circuit Protection,Thermal Protection,DC Terminal Insulation Impedance Monitoring,DC Component Monitoring,Ground Fault Currect Monitoring,Power Network Monitoring,Island Protection Monitoring,Earth Fault Detection,DC Input Switch Overvoltage Load Drop Protection,Residual Currect(RCD) Detection,Surge Protection Level
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
Communication Interface	WIFI,RS485,CAN
General Data
Operating Temperature Range(ºC)	-40ºC to 60ºC,>45ºC Derating
Permissible Ambinet Humidity	0-100%
Permissible Altitude	2000m
Noise (nB)	<45
Ingress Protection(IP) Rating	IP65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size(WxHxD mm)	420x670x233(Excluding Connectors and Brackets)
Weight(KG)	35.6
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years/10 Years,the Warranty Period Depends the Final Installation Site of Inverter,More Info Please Refer to Deye Warranty Policy
Grid Regulation	VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI0 21,EN50549-1,G98,G99,C10-11,UNE217002,NBR16149/NBR16150
Safety/EMC Standard	IEC/EN61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2

Production Line

Projcet Case
Certifications
Packaging & Shipping
FAQ
Q: Are you a trading company or manufacturer?
A: We are an original factory with more than 11 years of experience.
Q: Do you provide after-sales service?
A: Yes, the warranty is 5 years, if there's any quality problem during the warranty period, we can send new components as replacement.
Q: Can I order samples to test?
A: Yes, we can sell samples to you.
Q: How long for lead time?
Samples are 3-5 days and bulk order is 7-15 days.
Q: Is your battery with real capacity?
A: All of our battery cells with Grade A 100% new, and have real capacity.
Q: What kind of certificates do you have?
A: ISO, CE, FCC, IEC62133, MSDS, UN38.3, etc.
Q: What is your term of payment?
A: We accept T/T, PayPal, Western Union, and so on.
