Greenlanndplast Plastic Washing Recycling Line for Post Consumer HDPE Bottles

Product Description

Product Description
Greenlanndplast plastic washing recycling line for post consumer HDPE Bottles
The production line is mainly used for waste HDPE/LDPE/PP bottle,drum,pallet, crushing, washing recycling.
The production line includes conveyor ,crushing (with water), rinsing, high-speed friction washing, dewatering, drying, collection and packaging systems;
According to the size of the raw materials and the difficulty state of crushing, single shaft shredder or double-shaft shredder can be installed optionally before crusher, to increase the output of the crusher, thereby increasing the final output of production line.
Production line scheme can be specially designed according to the pollution state of customer's raw material ,the quality requirements of the finished product.
Product Parameters
Technical dates

Model	Capacity	Total power	Water supply	Labor	Area required
GLW-300	300kg/h(soft material) 500kgh(rigid material)	130KW	5-6 ton/h	1~2	25*4.5*5m (L*W*H)
GLW-500	500kg/h(soft material) 1000kgh (rigid material)	145KW	6-8ton/h	2~3	38*4.5*5m (L*W*H)
GLW-1000	1000kg/h(soft material) 2000kgh (rigid material)	190KW	8-10 ton/h	3~4	43*5*5m (L*W*H)

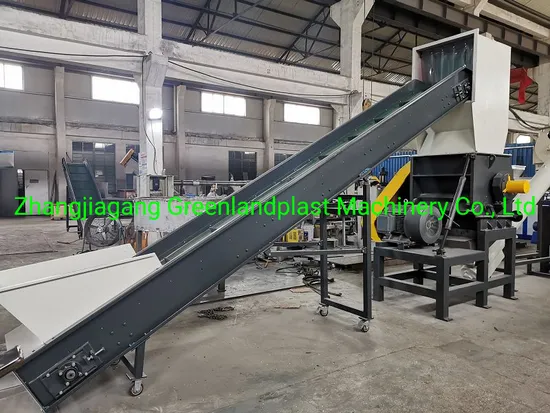

1)Plastic Crusher
2)Screw Loader
3)Floating Washer
4)High speed friction waher&dewtering machine
