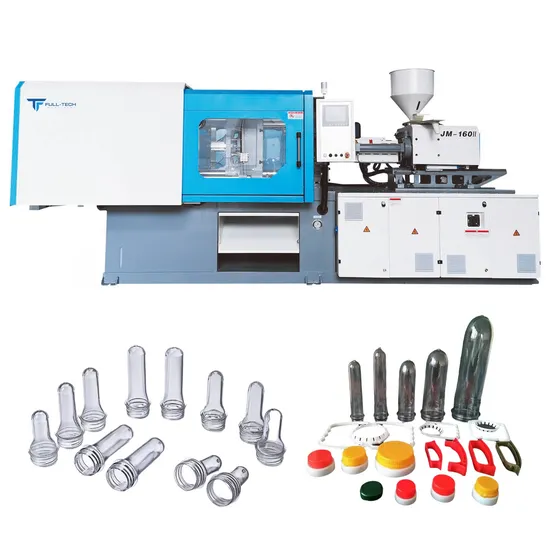

Automatic Bottle Cap Production Equipment for Bulk Production

Product Description

TS-2300 Plastic Crate Injection Molding Machine Making Container Moulding Machine
Product Description
INJECTION MOLDING MACHINES
1,Our injection molding machines are designed to provide you with superior performance and good efficiency.
2,Streamline your molding operations with our reliable and durable injection molding machines.

3,Our injection molding machines offer the best in performance and efficiency to fit your needs
Product Parameters

INTERNA TIONAL CLASS	UNIT	TS-2300
INJECTION UNIT		A	B
Screw diameter	mm	50	55
Screw L/D ratio	L/D	21	19.1
Injection volume	cm3	500	605
Shot weight	g	450	540
Injection rate	g/s	124	186
Injection pressure	Mpa	207	138
Max.screw speed	r/min	185
CLAMPING UNIT
Clamping force	KN	2300
Moving mold stroke	mm	490
Distance between tie-bars	mm	530*530
Max.mold thickness	mm	580
Min.mold thickness	mm	200
Ejector stroke	mm	145
Ejector force	kN	70
OTHERS
Max.Pump pressure	MPa	16
Drive+Pump motor power	KW	30+28.7
Heating capacity	KW	14.8
Machine dimensions	m	6*1.5*2.1
Machine weight	t	6.5

Detailed Photos
CLAMPING UNIT
* Larger space between tie-bars, suitable for larger molds and multi-cavity necessary.
* Extended and widened guide support, higher repeat accuracy, stable movement, small deformation, greatly improve product quality and mold service life.
* Upgraded parts, Graphite-copper bushes and slider used on tie-bar,ejector and movable platen,ensure fast and precise mold close and open.
* Better designed mechanical structure and toggle system, faster cyde time, and improve production efficiency.
* European type ejector structure, larger space, convenient for maintenance.
* Prepared enough space for upgrade and retrofits.
* Built-in and adjustment free mechanical safety bar, more safe and convenient.
* Much higher rigidity mechanical system than normal Chinese lMM, not only improve machine's using-ife, but also can protect mold.
INJECTION UNIT
* Wide variety injection unit with modular design can be provided depending on the features of molded products.
* Full supported injection unit with dual precise linearguide rails,ensure the best precision and fast sartspeed.
* Dual carriage cylinders improve a better injectionprecision.
* Injection unit steel pipes adopt pipe fitting to connect, no welding design ensure maintenance and after-service to be easier.
* Mobile nozzle shield makes production and maintenance easier.
* Imported high quality SKD61 material screw tip, check ring and thrust ring; a lot kinds of screws design can meet different plastic material and special processing injection molding needs.
* Double layer insulated material barrel, effective heat insulation,prevent scald, safer production process.
* The high torque and high speed hydraulic motor is used in the preplasticated motor with high efficiency and high response.
* Roller slide structure to facilitate customers to change raw materials.
HYDRAULIC UNIT
* Standard equipped with precise and energy saving servomotor system,energy saving capacity can reach to 20%-80% than traditional injection machine.
* World famous brands hydraulic parts ensure machine's reliability and fast response speed.
* Visible and dischargeable oil tank, easy for hydraulic circuit maintenance.
* Adopt modular adaptor valve blocks, hydraulic circuit and functions easy forup-grade and maintenance Effectively reduce pressure loss and improve responsiveness.
* Self-sealed magnetic suction filter, make your maintenance more convenient.
* Logical distribution of pump oil suction port, oil tank oil outlet and hydraulicpipe fits, easy for maintenance.
* Germany DIN standard hydraulic pipe fitting with seal, G screw thread styleplug, avoid oll pollution.
ELECTRIC UNIT
* World well-known brands electric parts.
* The high quality color liquid crystal controller, and the power system manufacturer cooperation research and development, thec ontrol is precise, the response speed is quicker, the powerfuls oftware control function, satisfies more different craft request. Standard equipped LED three-color tower light with alarm, machine working situation is clear.
* Modernized network management function available.
* Water-proof rubber seal used on electric cabinet ensure high safety.
* Machine program according to CE safety standard.
Sample Display
Company Profile
YANSHINE was established in 2009. Our core focus is professional design and manufacture of all kinds of plastic pallets, folding boxes, crate and other plastic logistics products mold.
We insist on the principle of " satisfying customers" demands and realizing the idea with professional solutions". As a result of our ongoing development, YANSHINE has a team of highly skilled designers, engineers, project managers, fabrication technicians and advanced large-scale precision machining equipment that ensures these injection molds manufactured by YANSHINE are produced according to European and North American standards.
We are small enough to give you the attention you need to take your project from the drawing board to the finished product. Yet we are large enough to provide all the services you need from an injection mould.
