Spot Laser Welding/Welder/Soldering Machine for Jewelry Precious Metal Products

Product Description

100W 200W desktop or vertical type YAG Spot Jewelry laser welding machine with inside or outside water chiller and argon pipe rotary for ring
Product Description:
This welder is specially developed for laser welding of jewelry by HJZlaser and mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application.The spot welding process is thermal conduction, ie. The laser radiation heats the surface of work piece,and the surface heat diffuse to the interior throught themal conduction and melts the work piece by controlling the wideth, energy, peak power and repeating frequency of laser- pulse to form specific molten pool. Because of its uniqueadvantage,it is widely used in the process of gold and silver jewelry and welding of mini and small parts.
Advantages:
High speed,high efficiency,deep,small deformation,small heat effect area,high welding quality,pollution free welding spot,environment friendly.
Features:
1.Small heat affected zone;
2.Does not lead to the product deformation welding the weld depth is big;
3.Welding is firm;
4.Melting fully,without trachoma,leave no trace repair;
5.Can work continuously 24 hour a day.
Application:
Widely used in precision machining of small parts,for example:Jewelry, denture dentures, communication tools, metal products, watches,stainless steel and other industries.
Technology parameters:

Parameter	Value	Value
Model	HJZ-W200	HJZ-W300
Max laser output power	200W	300W
Laser wavelength	1064nm
Laser spot adjust range	0.1-2.0mm
Pulse width	≤20ms
Welding frequency	0-40Hz
Aimed at position demand	CCD plus red light(optional)
Power demand	220±5%/50Hz/40A
Holistic power	4.5KW	6KW
Cooling	Water	Water
Use of the environment	Clan and dust-free source; 13ºC~28ºC,humidity 5%~75%	Clan and dust-free source; 13ºC~28ºC,humidity 5%~75%

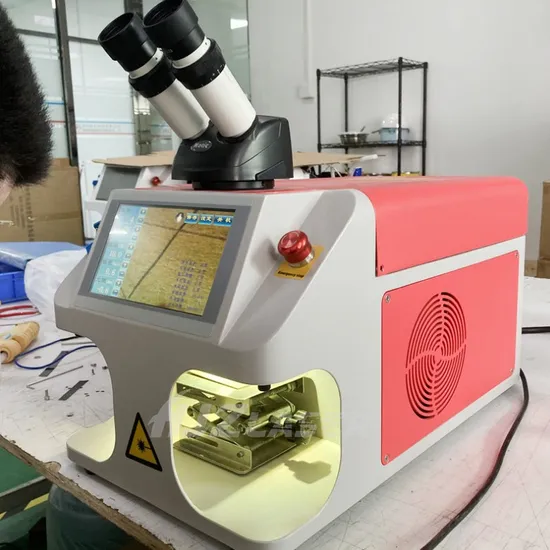

Product details
