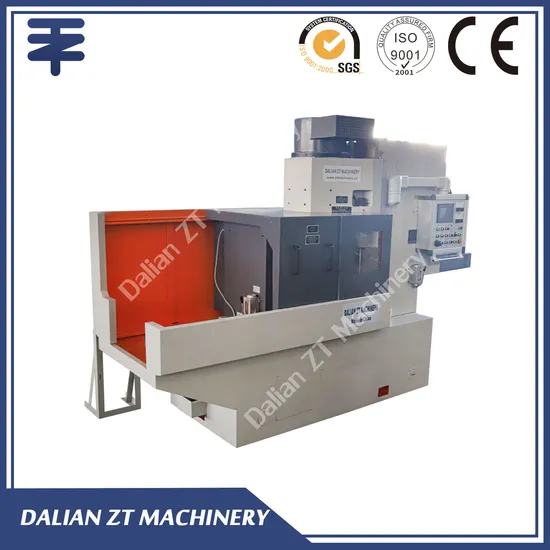

Bearing Grinding Machine with Rotary Worktable

Product Description

Product Description
The grinding range is from Φ500mm to Φ1600mm. is a high-efficiency grinder with round electro-magnetic worktable and vertical wheelhead, with its wheel end-face for flat-surface grinding, so it is used for rough-grinding of stock or rapid-grinding for moderate accuracy, suitable for batch production workshop. If fine-grit wheel is provided, the machine can also be applied for grinding higher finish and higher accuracy workpieces such as bearing rings, piston rings etc. Accordingly, this machine is suitable for grinding in automobile, tractor and bearing industry.

Item	M74125G	M74140G	M74160G
Worktable diameter	1250mm	1400mm	1600mm
Grinding head speed	740rpm	740rpm	740rpm
Worktable speed	5-20rpm	5-20rpm	2-15rpm
Max. swing diameter of workpiece	1300mm	1500mm	1700mm
Worktable movement	560mm	770mm	900mm
Total machine power	53(63)kW	71kW	96kW
Max. loading of worktable	1500kg	2000kg	4000kg
Grinding wheel size (OD*ID*H)	650x570x150mm
Segment tool size (LxWxH)	WP150x80x25mm	WP150x80x25mm	WP150x80x25mm
Grinding head motor power	45(55)kW	55kW	75kW
Roughness of machined surface	Ra0.8	Ra1.25	Ra1.25

Standard accessories:
Coolant tank;
Coolant pump;
Cable;
Wrench;
Machine wedge; Detailed Photos
Packaging & Shipping
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price. Customer's Visiting
