Double Guide Column Double Drive CNC Spiral Vertical Internal Broaching Machine

Product Description

Spiral broaching machine, intelligent, high efficiency, high precision, high stability, environmental protection.

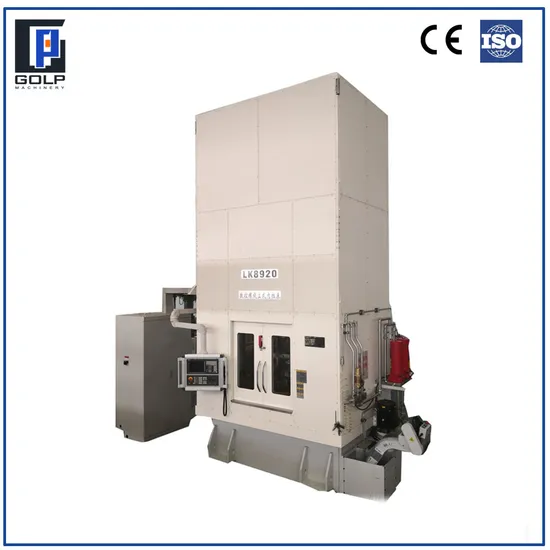

LK89 series CNC spiral vertical internal broaching machine is a four-axis linkage CNC spiral vertical internal broaching machine, using the main structure form of double column vertical broaching machine with double power drive and cylindrical guide sub; vertical linear axis (X1, X11 axis), rotary axis (C axis) and tool lifting axis (Z1 axis through the high-resolution linear and rotary encoder with the EG function of CNC system to achieve the internal gear ring with spiral line and spiral arc, and at the same time can complete the full processing capability of general-purpose vertical broaching with the shielding of C axis.
Δ Highly symmetrical design of the main structure, with a 5-centred co-planar of the guide center, drive center and broaching center.
ΔHelical rotary C-axis with "0 backlash" high precision gearing
ΔSpiral drawing linear axes (X1, X11 axes) + rotary (C axis) with high resolution encoder feedback for fully closed loop control.
ΔHigh flexibility in the form of dual-sided operation.
ΔKneadable, safe tool lifting devices.
ΔAutomatic cooling and chip flushing systems with precision filtration.
ΔFull envelope skeleton noise-reducing safety protection system.
ΔThe use of a deep secondary development of the Siemens 828D CNC.
ΔTool and fixture change aids reduce the intensity of manual operations for tool change; enhances operational safety and tool change efficiency.

Model	LK8910	LK8920	Unit
Rated tension	100	200	kN
Rated stroke	1250	2000	mm
Spiral angle	±45°	±45°	°
Broaching speed	1~7	1~7	m/min
Main slider return speed	1~15	1~22	m/min
Workbench size	680X420	780X480	mm
Height of loading and unloading	≤1250	≤1450	mm
Main motor power	27.97	41.67	kW
Total motor power	60	100	kW
Broach moves upward speed	1~7	1~7	m/min
Broach move down speed	1~7	1~7	m/min
Max. hole diameter for faceplate	Φ90	Φ140	mm
Maximum workpiece outsidediameterxthickness	Φ240X100	Φ260X100	mm
Net weight of machine tool	about16500	about 26500	kg
Workspace of the machinetool(LxWxH)	5900X4750X4780	6200X4750X5580	mm
