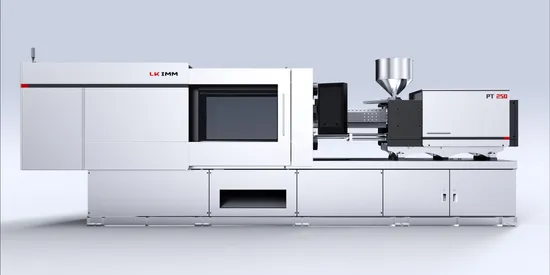

Lk Potenza-III 160 Ton High Precision Servo Injection Molding Machine

Product Description

Brief introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have over 10 production bases worldwide,1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.
There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service. K6 series adopts the new Internet of Things injection molding 5G concept, with independent knowledge and technology connotation. The injection power of this series is increased by 10% ~ 30%, the new machine hinge point optimization design, with low noise, energy-saving, environmental protection, cloud injection interface, and other significant characteristics.
Advantages
1. Enlarged design of the mode-locking structure
2. The whole machine layout is reasonable, the shape line is firm
3. The momentum is strong and the cycle is shorter
4. High response, low noise hydraulic system
5. High precision linear guide injection unit
6. Add cloud injection molding network interface
Use of application
Technical Parameter List

ITEM		UNIT	PT160
Shooting Part	Shot Weight(PS)	g	229	289	356
	Screw Diameter	mm	40	45	50
	Injection Volume	cm3	251	318	393
	Injection Pressure	MPa	228	180	146
	Screw L/D Ratio	L/D	25	22	20
	Injection Rate	cm3/s	153	194	239
	Plasticizing Capacity	Kg/hr	64	77	109
	Screw Speed	r/min	0-220
	Hopper Capacity	L	50
Clamping Part	Locking Force	kN	1600
	Die Height (Min.-Max.)	mm	180-520
	Opening Stroke	mm	430
	Space Between Tie Bars	mm	470×470
	Ejector Stroke	mm	140
	Ejector Force	kN	49
Others	Motor Capacity	kW	20.5
	Max Working Pressure	MPa	17.5
	Oil Tank Capacity	L	240
	Heating Capacity	kW	11.9
	Machine Dimensions (L×W×H)	mm	5080×1250×1950

Products Display
Factory Review
