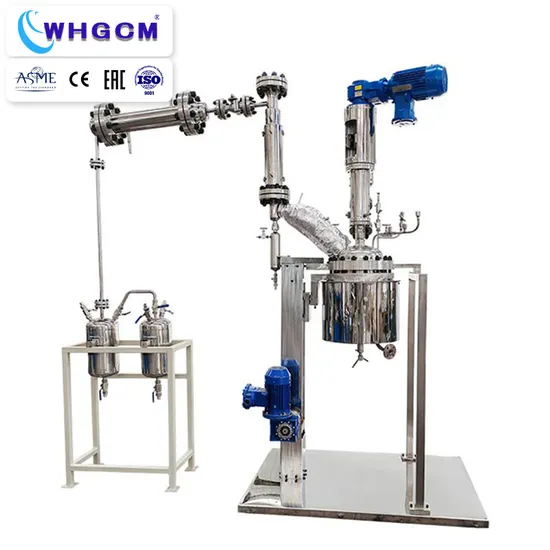

ASME U CE EAC Stainless Steel Jacket Electric Heating Polymerization Chemical Reactor with Ex Automatic Controller
| US$5,040.00-8,530.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
23060801fuzhou29L
Function
Storage Pressure Vessel, Separation Pressure Vessel, Heat Pressure Vessel, Reaction Pressure Vessel
Application
Mixture
Material
Stainless Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Low-Pressure
-0.1MPa<P<1.6MPa
Midium-Pressure
1.6MPa<P<10.0MPa
High-Pressure
10MPa<P<50.0MPa
Core Components
Motor, Pressure Vessel, PLC, Gear, Pump, Gearbox,
Certification
ASME-U CE-PED EAC-Coc Saber ISO Epr
Nozzle Ports
All Nozzle Ports Can Be Customized
Automatic Grade
Semi-Automatic
Control System
Pid PLC IoT Dcs Automation Control
Mixing Type
Different Agitators Against Reaction Needs
Sealing Type
Magnetic Seal/Mechanical Seal/Packing Seal
Manufacture License of Special Equipment
A1&A2
Key Selling Points
Industry Reactor
OEM/ODM
Available
Transport Package
Standard
Specification
Standard
Trademark
WHGCM
Origin
Shandong, China
HS Code
8419899090
Production Capacity
1000 Unites Per Year
Product Description
Product Parameters
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25~50 |
| Working pressure(MPa) | Negative pressure 0.1~40 MPa | Negative pressure 0.1~40 MPa | Negative pressure 0.1~30 MPa | Negative pressure 0.1~30 MPa |
| Working temperature(ºC) | -196~500 ºC | |||
| Stirring speed (r/min) | 0-1500 | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power(KW) | 0.8~1 | 1~3 | 3~6 | 4~9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Discharging type | Discharging from bottom, sampling from kettle lid | |||
| Mixer Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal | |||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. | |||
| Controller Device | Equipped with automatic or programmed PlD or PLC to achieve: Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control; Flow display and control; Valve open/close control, etc. | |||
Company Profile
Certifications
Customer Visit & Showcase
Production Equipment
Packaging & Shipping
FAQ
Pre-Sale Stage
Provide Design Drawing by free and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
1. Working Volume
2. Max Working Temperature
3. Max Working Pressure
4. Reactor inner Contacting material:SS304, SS316L or others?
5.Reactants and property,Whether it is flammable and explosive?
6. With mixer/agitator or not
7.Others more details
Production Stage
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, All Related Test Report, Approval Certificate.
After Sale Stage
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
Training & Installation
Arrange our engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
