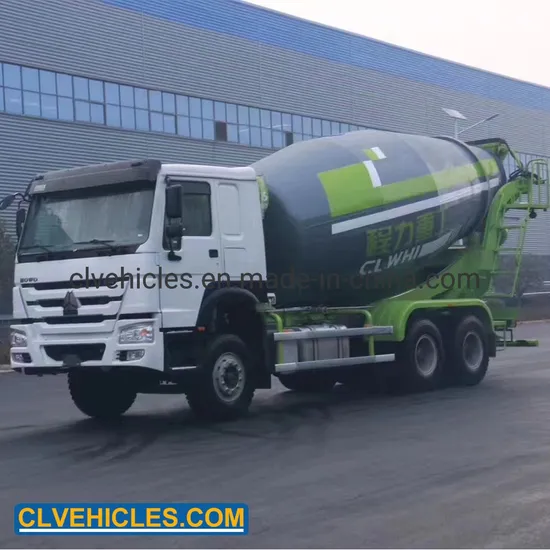

Manufacturer 8*4 18 Cubic Meter Cement Concrete Mixer Truck
| US$45,000.00-65,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW
Transmission Type
Manual
Emission Standard
Euro 2, Euro3, Euro4
Displacement
9
Fuel
Diesel
Drive Mode
8x4
Maximum Horsepower
300-400hp
Condition
New
Drive Type
LHD Rhd
Dimensions
10080*2496*3980mm
Wheelbase
1800+3200+1350mm
Housepower
371HP
Winch Qty
Required
Gvw
31000
Tire
12.00r20
Truck
Concrete Mixer Truck
Product
Cement Mixer Truck
Truck Name
Construction Truck
Transport Package
Bulk with Wax Covered
Specification
16cbm 18cbm 20cbm 22cbm
Trademark
CLW
Origin
Hubei, China
Production Capacity
100units/Month
Product Description
Chinese manufacturer 8*4 18 cubic meter cement concrete mixer truck for saleProduct Description: Concrete mixer truck is made to transport and mix concrete up to the construction site.The concrete mixing transport
truck maintains the material's liquid state through agitation, or turning of the drum, until delivery. We can also call transit
mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck,
mixer truck, volumetric mixer truck, agitator truck
Product Parameters
| Truck Specification | |||||||
| Truck model | CLW | ||||||
| Cab | HW76 FLAT CABIN | ||||||
| Driving Type | 8*4 Right hand drive | ||||||
| Max Speed (km/h) | 80 | ||||||
| Overall dimension(mm) | 10080*2496*3980 | ||||||
| GVW( kg) | 31000 | ||||||
| Mass in working order ( kg) | 16700 | ||||||
| Wheelbase(mm) | 1800+3200+1350 | ||||||
| F/R overhang (mm) | 1500/2380 | ||||||
| Approach/Departure Angel | 16/19 | ||||||
| Tire | 12.00R20 (12+1) | ||||||
| Clutch | Single-plate dry diaphragm spring clutch | ||||||
| Steering | Hydraulic steering with power assistance | ||||||
| Gear box | HW19710 ( 10 Front gears+2 rear gears) | ||||||
| Bridge | Front axle | HF9 | |||||
| Rear axle | HC16 | ||||||
| Engine | Model | WD615.47 | |||||
| Fuel Type | Diesel fuel | ||||||
| Type | Water-cooled .four-stroke, six-cylinder , direct injection, turbocharged | ||||||
| Exhaust(ml) | 9726 | ||||||
| Max output power(hp) | 371hp | ||||||
| Max torque/rotate speed(N.m/rpm) | 1560/1200-1500 | ||||||
| Braking system | Service Brake | Compressed air brake | |||||
| Park Brake | Spring energy | ||||||
| Auxiliary brake | engine exhaust brake | ||||||
| Eletric system | 24v | ||||||
| Drum Description | |||||||
| Mixing volume | 18m3 | Loading Coefficient | 66.7% | ||||
| Charging speed | ≥3 m3/min | Discharging Speed | ≥1.3 m3/min | ||||
| Mixing speed | 0-16rpm | Residual rate | ≤0.5% | ||||
| Inclination angle | 16±0.5° | Oil tank working temperature | 50ºC-70ºC | ||||
| Drum material | Disk End | 8mm/16MnR | Water tank volume | According to mixer tank | |||
| Slump | More than 12 | ||||||
