Agricultural Gearbox Rotary Rake Beater Flail Machine Factory OEM/ODM Klf190-R3 Two Output Shaft Tiller Gear Box
| US$200.00-500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KLF190-R3
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
ISO
Color
Red
Warranty
Warrantee
OEM
Available
Ratio
1.93:1/1.46:1
Input
38HP/63HP
Input r.p.m
540
Output r.p.m
280/370
Input N.M
495/813
Output N.M
955/1187
Kw
28/46
Transport Package
Crate
Specification
Cast iron
Trademark
KADIVA
Origin
Zhejiang China
HS Code
8483409090
Production Capacity
50000PCS/Month
Product Description

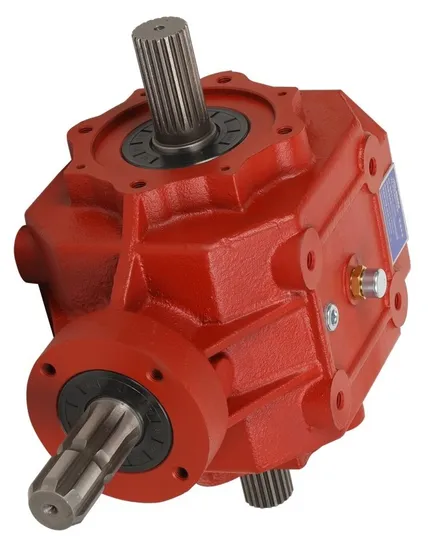

Agricultural Gearbox Rotary Rake Beater Flail Machine Factory OEM/ODM KLF190-R3 Two Output Shaft Tiller Gear box Product DescriptionKLF190 Through-shaft rotary beater transmission gearbox
This product is used in the main transmission gearbox of through-shaft rotary tillers and beaters. It is derived from European and American design concepts. The main transmission box drives the side box and drives the cutter shaft to rotate to achieve plowing operations. Split welded pipe and half shaft structure. It achieves the advantages of easy replacement and maintenance, and the design is not limited by disadvantages such as length. The flange end on one side uses imported maintenance-free bearings for a longer service life. The transmission half shaft is wrapped in a welded pipe, which is safer to use and has a more beautiful design. The design range of KLF190 is within 1.2 meters - 1.4 meters; with the addition of a variable speed shifting function to achieve 4 output speeds at the same input speed. Product Parameters
Detailed Photos
Click here for more products
Company Profile
Please contact us if you need more informations
