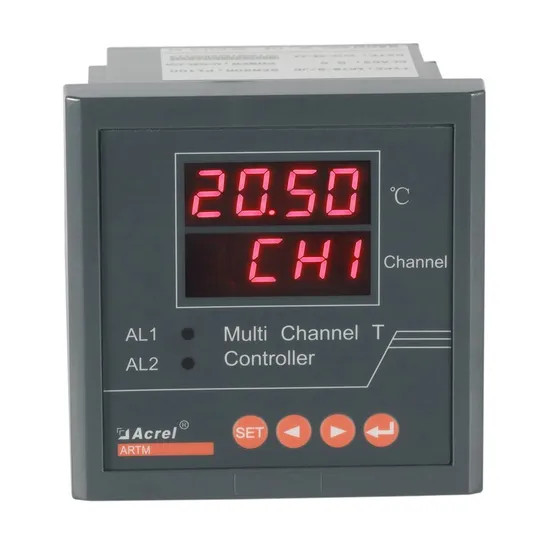

Factory Price Acrel Artm-8/Jc PT100 Wired Temperature Display RS485 Temperature Inspection Device for Transformer Winding
| US$70.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ARTM-8/JC
Installation
Direct Connected
Usage
Temperature Monitoring and Control
Electric Equipment
Three-phase Three-wire
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Continuous Wave
Type
Temperature Controller
Certification
RoHS, CE
Customized
Non-Customized
Product Name
Multi-Input Temperature Controller
Brand
OEM ODM
Temp Monitoring
8 Channel PT100
Accuracy
Class 0.5
Output Capacity
AC250V/5A DC30V/5A
Optional Function 1
RS485 Modus RTU
Transport Package
Fob Shanghai
Trademark
ACREL
Origin
China
Production Capacity
10000PCS/Per Month
Product Description
Product Description Multi Channel Temperature ControllerGeneralARTM-8/24 series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.
Features
8 or 24 PT100 measurement;2 Alarm relays;LED display;Auxiliary power supply adapts with AC220V, DC220V, DC110V;1 RS485 serial communication, Modbus-RTU;
Technical Parameters
| Model | ARTM-8 | ARTM-24 |
| Channels | 8 | 24 |
| Inputs | Thermal resistance: Pt100 | |
| Accuracy | 0.5S | |
| Alarm | 2 groups normally open,Capacity AC250V/5A,DC30V/5A | |
| Auxiliary power supply | AC85-265V, DC100-350V | |
| Power consumption | ≤2W | |
| Capacity | AC250V/5A; DC30V/5A | |
| Baud rate(bps) | 1200,2400,4800,9600,19200 | |
| Isolation | 2kV/1min Ac effective value | |
| Communication | RS485 MODBUS-RTU | |
| Cut-out | 88*88mm | |
| Temperature | Working: -10ºC~+55ºC, Storage: -25ºC~+70ºC | |
| Humidity | ≤95%(no condensation) | |
| Altitude | <2000m | |
Wiring
Typical connection
