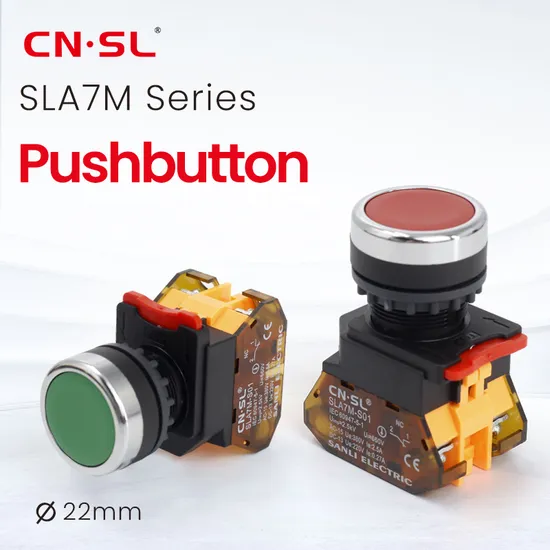

Sanli SLA7M series 10A control appliance push button switch

Product Description

Structural feature The contact system of SLA7M series push-button switch adopts modular combination structure, which is flexible, convenient and reliable. Normally open and normally closed contacts are separated in structure, electrically insulated, and can work in different poles. The dynamic and static contacts adopt sliding contact, self-cleaning and reliable contact. The terminal is provided with an anti-shock partition board, and the terminal adopts a combination screw to press the wire, which is convenient to install and has a screw limiting structure.
Technical parameters
Basic parameters of illuminated pushbutton:

Illuminant	Direct-type
	AC/DC 6V	AC/DC 12V	AC/DC 24V	AC 110V	AC 220V	AC 380V
LED	√	√	√	√	√	-
Neon lamp	-	-	-	√	√	√
Incandescent lamp	√	√	√	-	-	-

Rated operating current corresponding to rated operating voltage:

Type of use	Rated value
AC-15	Rated operational voltage(Ue)	380V	220V
	Rated operational current(Ie)	2.5A	3.3A
DC-13	Rated operational voltage(Ue)	220V	110V
	Rated operational current(Ie)	0.27A	0.6A

Mechanical endurance	1 million times (Flush pushbutton) (Momentary)	600 thousand times (Mushroom head Pushbutton,Illuminated pushbutton) ( Momentary)	100 thousand times (Selector switch, Key switch, Self-locking pushbutton,Emergency stop button)
Electrical endurance	100 thousand times
IP Degree	Front of board is IP50, and IP65 is customizable
