Small Milling Machine for Metal with Drilling and Tapping Fucntion TV500/700

Product Description

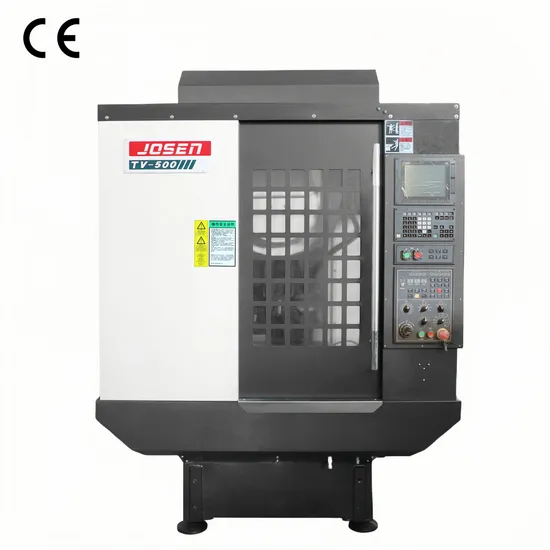

Vertical Machining Center TV-700 High Rigidity High Speed CNC Milling Machine
Product Description
Basic Info

No	Name	No	Name
1	Mitsubishi Japan CNC controller	10	Chip pan and water tank
2	Full cover shroud	11	Transformer
3	Automatic lubricant system	12	Spindle air curtain dust protection system
4	Ground bolts and spacers	13	Mechanical, electrical and operating instructions
5	Tool-box	14	Rigid tapping
6	Work light	15	Electrical box heat exchanger
7	Warning light	16	Machine cleaning water gun
8	M30 automatic power-off system	17	Three-axis slide telescopic shield
9	Portable chip blowing air gun

Main technical parameters	Unit	TV 500	TV 700	TV 1000
X-axis travel	mm	500	700	1000
Y-axis travel	mm	400	400	500
Z-axis travel	mm	350	350	350
Distance from nose of spindle to table surface	mm	150-500	150-500	180-530
Working table size (X*Y)	mm	650*400	850*400	1100*500
Table T-slot size (width * number of slots * spacing)	mm	14*3*125	14*3*125	14*5*80
Max. loading capacity of working table	KG	250	250	400
Spindle motor (continuous/30 minutes)	kw	3.7/5.5	3.7/5.5	3.7/5.5
Spindle speed	rpm	10-20,000	10-20,000	10-20000
Spindle inner taper bore		BT30	BT30	BT30
X/Y/Z axis motors	kw	1.5/1.5/2.2	1.5/1.5/2.2	3.0/3.0/3.0
Rapid feed rate (X/Y/Z)	mm/min	48000/48000/48000	48000/48000/48000	48000/48000/48000
Fastest cutting feed rate	mm/min	1-10,000	1-10,000	1-10000
Tool magazine capacity (standard/optional)	set	21	21	21
Tool magazine form		Arm type	Arm type	Arm type
Tie rod bolts form		MAS-P30-1(45°)	MAS-P30-1(45°)	MAS-P30-1(45°)
Maximum tool diameter of adjacent tools		Ø80	Ø80	Ø80
Max. tool diameter of empty adjacent tool		Ø80	Ø80	Ø80
Maximum tool length	mm	200	200	200
Maximum tool weight	kg	3	3	3
Positioning accuracy (full stroke)	mm	±0.005	±0.005	0.01
Repeat positioning accuracy (full stroke)	mm	±0.003	±0.003	0.005
Controller		Mitsubishi M80	Mitsubishi M80	Mitsubishi M80
Water tank capacity	liter	170(Back)	170(Back)	300(Back)
Pneumatic pressure requirements	kg/cm2	6	6	6
Power Specifications		AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz
Electricity demand	KVA	20	20	20
Floor space (L*W)	mm	1630*2450 (Back)	2050*2450 (Back)	2550*3000 (Back)
Machine height (maximum)	mm	2270	2270	2550
Machine weight	T	2.5	3	5000

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
