Gypsum Board Plant Line Automation Equipment

Product Description

Product Description
gypsum plaster board /drywall making machine with Europe standard

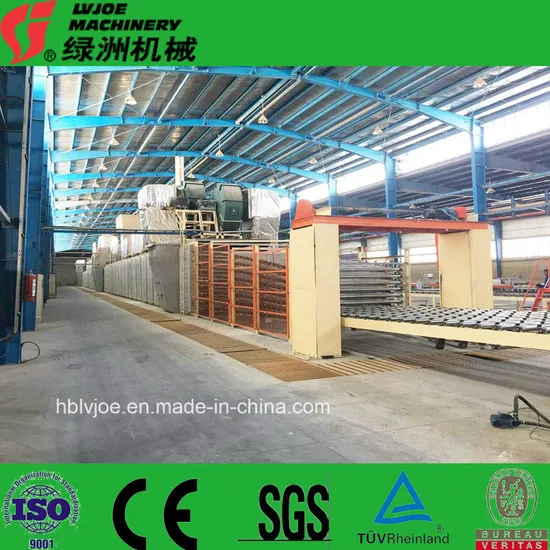

Large Capacity of 50 Million Sqm/Y Full Automatic Gypsum Board Production Line
1. Annual output:

2million to 50 million sqm(based on thickness of 9.5mm gypsum board)

2. Working time:

24hours/day and 300 working days/year

3. Raw material:

Gypsum powder, shielding paper, modified starch, foaming agent, glue

Raw Material Designation	Consumption (Kg/m2)
Gypsum Powder	5.7-6.1
Faced paper(210G/M2)	0.42
Water	4.3-4.9
Modified starch	0.25-0.30
Foaming agency	0.008-0.011
Emulsion(White latex)	0.006-0.007
Electricity	0.3-0.4kwh
Coal	0.7-1.0Kg(6000 Kcal)

4. Fuel:

Natural gas, diesel, or coal

5. Product quality and specification:

1) The product is in compliance with National Standard GB/T9775-2008 2) Product specification: Length: 2400mm~3600mm Width: 1200mm or 1220mm Thickness: 8mm-20mm

6. Main process:

1)Raw material blending; 2)Shaping; 3)Wet board/panel conveying; 4)Drying; 5)Dry board/panel conveying; 6)Finished product stacking and storage.

7. Main technology:

The production line adopts special designed hot air stove heating system

8. Annual consumption of raw materials:

Gypsum powder: 102000mt/year Shielding paper: 6750mt/year Modified starch: 600mt/year Foaming agent: 120mt/year Glue: 75mt/year

Detailed Photos
Machine Parts
Name: Drying System
Brand: LVJOE
Original: China
The drying system is the core of the whole production line and it affects the quality and the energy consumption of the products.
Main Features
Name: Mixer system
Brand: lvjoe
Original: China
It has the accurate screw measurement pump and visual liquid flow meter device which lead great convenience for operation.

Machine Parts
Name: paper supply system
Brand:LVJOE
Original:China
The high precision electro-hydraulic alignment device, along with the automatic marking device to ensure the good appearance and quality.
Main Features
Name: Control System
Brand:LVJOE
Original: China
All of the control station adopts PLC control system. We can ensure the reliable operation and realized the long-term and continuous fully automatic running of the gypsum board productioin line.

Packaging & Shipping

Packaging Details	uitable package for long distance transportationwooden boxes: load electrical cabinet, small parts etc.carton boxes: load motor, screw, bolt etc.plastic package: rock wool
Port	TianJin

After Sales Service
1. We promise to reply in less than 24 hours
2. We will try to control the delivery in the shortest time than you expected and required.
3.Our engineer will come to your country to install and guide the equipment until the quality gypsum board come out.

Company Profile
Hebei Lvjoe Machinery Manufacturing Co., Ltd. is professional in designing and manufacturing all kinds of industrial equipments. In the last few years, we have successfully developed many kinds of industrial equipments. Pls find our products as belows:
1. Mineral wool ceiling board production line;
2. Gypsum powder production line;
3. Gypsum block production line;
4. Gypsum board lamination machine;
5. Gypsum board production line;
Hebei Lvjoe Machinery Manufacturing Group Co., Ltd. was founded in 1998, which is a diversified development enterprise integrating R&D, design, production, international trade and engineering equipment. We are a strong unit with comprehensive strength in the national gypsum equipment industry.
We have the certificate of high-tech enterprise which is issued by the nation, the certificate of Gypsum Building Materials Equipment Research Center, the CE quality system certification which is issued by the European Union, the ISO9001 quality system certification. In 2011, the Gypsum Building Materials Equipment Research Center was established. It is a municipal-level civilized unit in Hebei Province, contract-honoring and trustworthy unit.

FAQ
Are you a factory or a trading company?
We are a factory. All the related process commercially or technically, feel free contact us!
What information do you need to make the quotation?
The output per year, the type of the heat source, better with the gypsum ore test report. The more information we get, the suitable of the project will be. It's simple and just tell me what you want to do, we'll make it for you.
What type of the gypsum powder is suitable for the production line?
Gypsum powder made from ore, desulfurized gypsum, phospho gypsum are all available. If possible, send us your powder test report, we'll adjust the raw material formula and device parameters to make the qualified board.
Do you have other gypsum machine?
Yes, we can design and manufacturer almost all kinds of gypsum machine. Gypsum board and gypsum powder production line are our main product around world. Certainly, I can send you a catalog of our product.
Can you supply the input raw material?
Yes, after your getting the formula, if it is not convenient for you to find the long term raw material supplier locally, we can supply the needed material from China.
