Cyt29 Integrated Circuit Microcontroller Wireless Module

Product Description

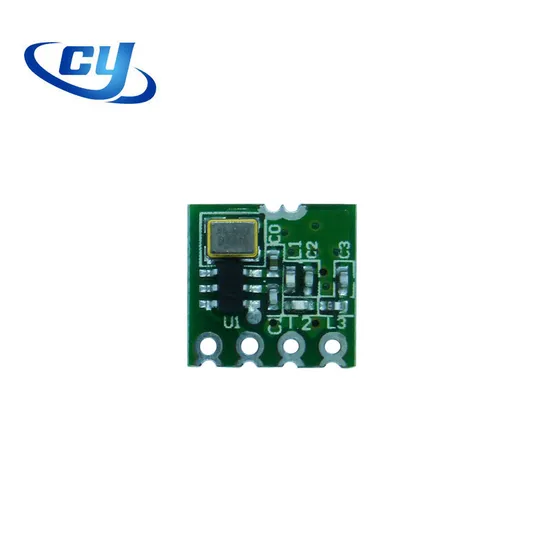

CYT29 ASK 433 High speed wireless rf transmitter module long distance module
Product Description
DESCRIPTION:
CYT29 ASK/OOK wireless transmitter module gets excellent performance with ISM frequency band. With the adoption of branded industrial RF wireless data transmission chipsets, it has the advantages at strong transmission power, low voltage and easy to pass FCC/CE certificates. It can do wireless signal input to the data signal output without any external circuit. Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.
FEATURES:
Frequency: 240 MHz - 960 MHz (ASK/FSK); High output power: +14dBm; Low operation voltage: VCC = 1.8 to 3.6V; Static current: <20nA; 50% duty ratio transmitting current: 18.5mA; Freq deviation: ±30KHz; FSK deviation: ±35K Circuit shape: PLL (10PPM), stable working frequency; Temperature Range: -20ºC ~ 70ºC The range can be up to 500m in the open space when matching with CY68 Dimension: 10.6*10.4*2.1mm APPLICATION:
Remote Gate Controls, brake Remote Keyless Entry Mechanical and electrical control of strong interference; Wireless Industrial Remote Control Wireless Data Transmission Remote Control Curtain

Pin Name	Pin Definition
VDD	Connect to positive power supply
DATA	Data input
GND	Ground
ANT	Antenna input
GND	Ground
