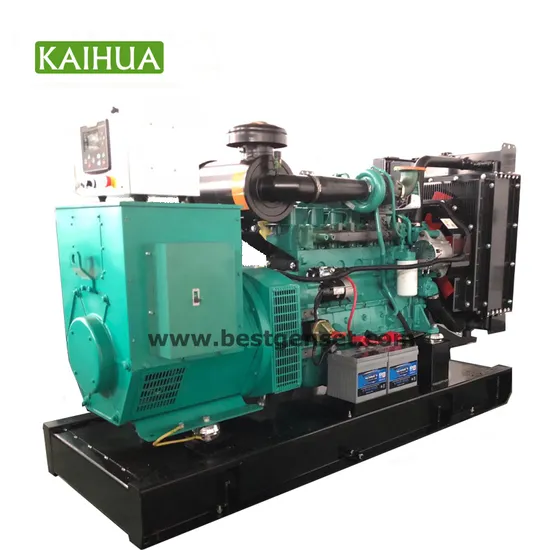

100kVA, 150kVA Cummins, Perkins, Yuchai, Volvo Diesel Engine Electric Generators
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KH-80GF
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
HSS
Conditions of Use
Land Use
Usage
Common Units
Landuse Type of Unit
Low Noise
Excitation Mode
AC Rotating Exciter
Frequency
50/60Hz
Voltage
400/230V
Genset Model
Kh-80GF
Engine Model
6bt5.9-G2
Transport Package
Plywood Case or PE Film
Specification
2200x1000x1460
Trademark
KAITONG
Origin
Jiangsu
HS Code
8502120000
Production Capacity
3000pieces/Year
Product Description
| Technical Specifications | ||||||
| Genset Model | KH-80GF | ||||
| Prime Power | 100KVA/80KW | ||||
| Standby Power | 110KVA/88KW | ||||
| Rated Voltage(V) | 400/230 | ||||
| Rated Current(A) | 144 | ||||
| Rated Frequency(Hz) | 50 | ||||
| Rated Speed(RPM) | 1500 | ||||
| Power Factor(COS¢) | 0.8(lagging) |
| Alternator brand | Stamford, Leroy Somer, Marathon, Kaihua Alternator | ||||
| Connecting Type | 3 Phase and 4 Wires | ||||
| Number of Bearing | 1 | ||||
| Protection Grade | IP23 | ||||
| Altitude | ≤1000m | ||||
| Exciter Type | Brushless ,Self-exciting, AVR &100% Copper winding wire | ||||
| Insulation Class | H |
| Company Information | ||||||
| Kaihua was built up in 2003, with registered capital reaching 17 million USD. Its products were exported to 50 more countries. Annual output is over 2000 sets with revenue around 30 million USD in total. 100 people work here, among whom 2/3 are college educated. Engineer team consists of 15 more people with professional electric background. With a complete production line combined with advanced testing center, we ensure to produce high quality and reliable products. CE, ISO9001:2008, ISO14001 certificates are awarded. Kaihua aims to provide one stop service for all customers. 3 main products (ie 3~3000kva diesel generator sets, control cabinets, spare parts) total 27 types to cover customer's needs comprehensively. | ||||||
| Exhibition |
| Awards | ||||||
