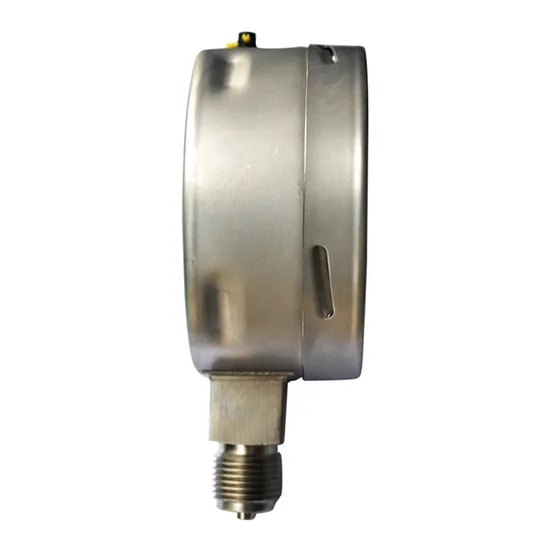

Pressure Gauge Pressure Gauge 60mm 1/4 Threaded Connection All Stainless Steel Pressure Gauge

Product Description

Pressure Gauge Pressure Gauge 60mm 1/4 Threaded Connection All Stainless Steel Pressure Gauge
1.Product Description

Outer Size:	(1.5")40mm;2.5"(63mm);4"(100mm); 70mmetc.
Pressure range	0.1-3.5mpa 500PSI
Measure	MPa, Bar, Psi
Accuracy	1.6% ,2.5%
Connection	1/8 1/4 3/8 BSP NPT PT
Shell Material	Iron
Connection Matrial	Copper
Window Material	Glass or Platic
Needle and Disc Material	Aluminum
Internal Material	Copper

2.Medium and Application
5 Applications for Pressure Transducers Measuring the level of water in a tank with a pressure transducer. ... Isolating a water pipe leak with a pressure transducer. ... Identifying a gas leak with a pressure transducer. ... Monitoring gas pressure with a pressure transducer. ... Measuring pump pressure with a pressure transducer. ...
3.Application

Name :	Heavy duty Pressure gauge (SS/BRASS)
Model	117CL
Diameter	2.5"(63mm),4"(100mm)
Accuracy	±1%,±1.6%
Range	-30"Hg-0 (vacuum) -30"Hg-24bar(Compound) 0-0.6 to 1000bar
Case	Stainless steel with roll ring
Wetted Parts	copper alloy
Specifications	Nominalsize: 2.5"(63mm),4"(100mm),6"(150mm) Accuracy: +-1.6%of full scales for 2.5"( 63mm) +-1.0% of full scales for4" (100mm),6"(150mm) Range available(nostock): 0...0.6to0...1000 bar or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation	2.5"(63mm):Steady: 3/4xFull scale value luctuating:2/3x Full scale value Shorttime:Full scale value 4"(100mm),6"(160mm) Steady: Full scale Fluctuating: 0.9xfull scale value Short time:1.3x full scale value
Application	Sturdy Industrial Pressure Gauge designed in compliance with the Operational safety requirements of EN837-1 Reliable Pressure Gauge for the machine and plant construction industry as well as building services industry For Gaseous and Liquid Media that are not highly viscous or crystallising and will not attack cooper alloy parts Proven in refrigeration technology
Special Features	LongserviceLife,Robust Cost-effective and reliable Tocombine with SHUNJAY diaphram seals Scale range sup to0.....1000bar

4.About Us SWD PLASTIC (Salvador Industrial Co., Ltd) is a leading and professional manufacturer and exporter for UPVC, CPVC, PPH, PVDF pipes, valves and fittings in China. We stick to the principle of " Quality First, Service First, Continuous Improvement and Innovation to Meet the Customers", and the quality management objective of " Zero Defect, Zero Complaints".
SWD Products are widely used in Agricultural Irrigation, Wastewater Treatment, Aquaculture, Pharmaceutical Industry, Electroplating, Papermaking Industry...
Most of our products confirm to ANSI, DIN, BS, JIS & TIS standard and have been already sold to United States, Canada, Mexico, Chile, Colombia, Peru, Russia, Saudi Arabia, UAE, Iran, Iraq, Thailand, Philippines, Indonesia, Malaysia etc. With very good reputation.
With rich experience in piping & duct systems, we will provide best solutions and services to you.
Welcome to our company visit and discuss business, sincerely hope our professional technology and individual service can win your trust and favor, looking forward to cooperate with friends all over the world, let′s do win-win business together!
5.Packaging
We value the packaging of our products. Multi-layer packaging prevents impurities from adhering to the valve body and is brought into the media.
6.FAQ: (Frequently Asked Questions)
1. What is your MOQ?
Our MOQ is usually 5 CTNS.
2. What is your delivery time?
Our delivery is about 30-45days.
3. What are your payment terms?
We accept T/T, 100% L/C, or West Union and so on.
4. Could you provide free samples?
Usually, we offer free samples, customer bear the freight cost.
5. Why choose us?
Firstly, comparing with many factories, our prices are more competitive.
Secondly, We 100% test working pressure for ALL our products, and we inspect 5 times every order.
1) Inspect when the ball valves come out from the injection moulding machine
2) Inspect when adding O-rings
3) Inspect when installing handle caps
4) Inspect after working pressure test
5) Inspect before packing
Finally, After- Services will be highly satisfied. Any problems and feedbacks will be responded efficiently.
