Bottles Washing Line Designed for High Capacity Plastic Recycling Process

Product Description

Applicable Material:
Our innovative system is perfectly suited for recycling a vast array of materials including PE/PP bottles, drums, lumps, pipes, baskets, crates, household bottles, plates, and so much more. This versatility ensures maximum efficiency and adaptability.
Introduction
Crafted by the experts at YILI Machinery, our state-of-the-art waste hard plastic recycling and washing line is engineered to handle a diverse assortment of hard plastic materials. From PE or PP bottles and IBC tanks to pipes, lumps, flakes, jugs, blocks, and even die head materials, this line is a powerhouse of versatility. Featuring an ensemble of high-performance machinery including shredders, crushers, friction washers, floating tanks, and centrifugal dryers, our line boasts an impressive handling capacity ranging from 300 to 5000 kg/hr. Our cutting-edge technology ensures precise, efficient decontamination using both cold and hot washing systems, ensuring that the final products are of exceptional quality, ready to be used on their own or blended with other materials for reprocessing.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
HQX500	500	160	0.5	3
HQX1000	1000	220	1.2	3
HQX2000	2000	350	3	4
HQX3000	3000	410	4	4
HQX5000	5000	500	5	6

Tech Features & Advantages
This sophisticated production line offers automatic control, a streamlined and compact process, superior production efficiency, and exceptional cleanliness.; Our advanced line effortlessly separates mud, sand, and other impurities from films and bags, ensuring a pristinely clean output.; Equipped with a pre-treatment system featuring pre-washers and label processing, the line significantly enhances the quality of the end product.; Our line includes a high-capacity dewatering machine, capable of processing up to 5000kg/hr with unmatched efficiency. Designed with a unique floating tank, it not only guarantees the cleanliness of washed materials but also facilitates easy discharge of dirt through user-friendly hand or pneumatic valves.; The system prioritizes easy maintenance, boasts low energy consumption, and offers a long service life, making it an exceptionally cost-effective choice.
Main Machines For the line

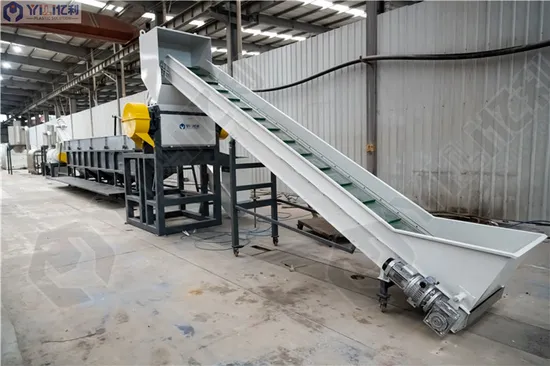

Belt conveyor
Our belt conveyors come in both light and heavy-duty types, powered by a robust gear box motor and equipped with side walls to prevent material spillage. For added security, a metal detector can be optionally installed on the conveyor.
Shredder For larger raw materials, such as big plastic drums, tanks, lumps, or die head materials, our shredders are the first step, performing preliminary grinding with precision. After this initial reduction, materials proceed to the second-stage crusher for a finer grind, achieving final sizes of less than 12mm. This size is optimal for pure cleaning. Our series of shredders offer a range of capacities and features to cater to diverse customer needs.
Crusher
Our crushers are designed to break down materials into smaller, more manageable sizes. Incorporating water in the process not only cleans the material but also cools the blades, ensuring durability. Large pieces are efficiently reduced to smaller fragments, enhancing washing results and simplifying packaging.
Frication Washer The frication washer is engineered for high-speed washing, utilizing water to effectively eliminate contaminations, dirt, and grease. Post-washing, materials are transferred to the floating tank for further purification.
Floating tank
Our floating tank module separates sediments and metals with remarkable efficiency. Featuring washing wheels designed for optimal washing performance and speed, controlled by an inverter, the tank's bottom is equipped with a magnetic valve to promptly discharge debris. Crafted from stainless steel, it ensures durability and reliability.
Centrifugal Dryer The horizontal centrifugal dryer excels in drying plastic flakes with high efficiency and minimal energy usage. Its grid mesh is self-cleaning, timed for automatic operation, providing both washing and drying functions for materials.
Hot air pipeline heating
Constructed with stainless steel, the hot air pipeline is designed to deliver hot air internally, effectively drying materials further by reducing internal moisture content.
