Taijia portable rebar detector for sale rebar scanner locator concrete reinforcement scanner locator

Product Description

Product Description

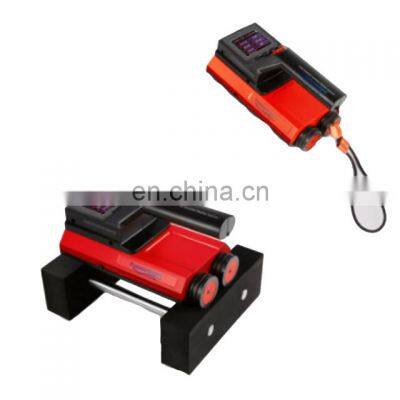

Product DescriptionApplicable standards： GB 50010-2010《Design code for concrete structures》  GB 50204-2015《Code for acceptance of construction quality of concrete structure engineering》  GB/T50344-2004《Technical standards for building structure inspection》  JGJ/T152-2008《Technical specification for steel bar detection in concrete》 DB11/T365-2006《Technical specification for the electromagnetic induction method to detect the thickness of the protective layer and the diameter of the steel bar》The main components of JY-8ST rebar scanner are:1) Instrument host 2) Charger 3) Data transmission line 4) Software CDInstrument hardware features:High-resolution color LCD screen (2.8 inches, 320x240 pixels, 65536 colors). Integrated host, the detection unit is integrated with the host, no signal line is needed. Built-in large-capacity lithium battery, the maximum working time can reach 30 hours.Both wireless Bluetooth transmission and wired transmission are available Small size: 22CM×12CM×11.8CM. The weight of the instrument host: 0.61KgSpecificationPerformance characteristicsIntuitive display of test results: thickness of protective layer, spacing of steel bars, number of steel bars. Waveform detection can be carried out, which is convenient for analyzing the condition of steel bars. Through the aiming frame, the position of the steel bar and the middle position of the two steel bars can be accurately located. The calibration value is automatically stored, eliminating the need for calibration before each test; in special circumstances, it can be calibrated again. Thickness detection, profile scanning, and grid scanning are all borderless, and can complete a wide range of scanning. One waveform scan can complete the detection of a range of more than 5.5 meters. The built-in large-capacity memory chip can store more than 2000 components or 170,000 measuring points; it is convenient to store, view and delete data on the spot.Simple data transmission, as long as the instrument is turned on (in the main interface, main menu interface, transmission interface) and connected to the PC with a data cable, the instrument can transmit data to the computer without any operation. In the transmission interface, the data can be directly transmitted via Bluetooth to the computer (optional) It is equipped with professional data analysis software, which can professionally process the detection data and generate various detection reportsInstrument technical indicationsRange of different steel bar diameters:Small range(mm)Large range(mm)Φ6mm ～Φ10mm1～701～100Φ12mm～Φ18mm1～801～120Φ20mm～Φ28mm1～801～136Φ32mm～Φ50mm2～865～210Different thickness error range:Test rangeError rangeSmall range mmBig range mm±11-591-59±260-8660-89±4-----90-210Related productsCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Packing & DeliveryCarton for TEM-8ST steel bar scannerAbout UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received 3. MOQ:1 set. 4. Service expresscompany:TNT/DHL/FedEX. 5. We accept T/T, Western Union, PayPal & Secure Payment.Dalian Taijia Technology., Co LtdNO.5 Shanshui Yuan, High-tech Industrial ZoneDalian, China 116033E-mail:commercial at TEL:86-411-39685079 WhatsApp：:+8618842866177 WeChat：:+8618842866177
