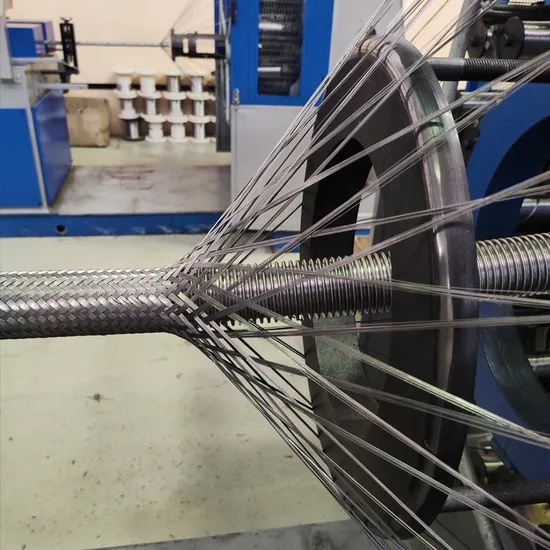

Braiding Machine Wire Braiding Machine

Product Description

Type 1: High speed Braiding Machine for High Tensile Wire Production Description
1. Control form: Automatic digital control (plc+ man-machine interface)
2. Drive motor: frequency conversion + servo motor (variable frequency control of braiding part, haul off servo drive)
3. Braided hose diameter (maximum) mm: Φ60
4. Spool capacity: 7~7.5KG
5. Braiding pitch: 30-179mm
6. Spindle speed r/min: 23 (design speed) 18 (actual working speed)
7. Total power: 14kw
8. The number of braiding layers at one time: 1 layer
9. Dimensions mm: 4027*1980*2450 (length * width * height)
10. Noise reduction protection: full noise reduction protection room

BJZ High-speed wire braiding machine main tech parameters (Single Decker )
Product model	BJZ16	BJZ20	BJZ24	BJZ36
Spindle Rpm(r/min)	45	35	30	18
Max.Braiding diameter(mm)	10	13	25	51
Bobbin capacity(kg)	7.5	7.5	7.5	7.5
Braiding angle	54°44"	54°44"	54°44"	54°44"
Braiding angle	3765*1728*2150	3765*1728*2150	3765*1728*2150	4027*1980*2450

Advantage
* The machine has high speed compared with the ordinary wire braiding machine, easy to operate and high high precision.
* The machine all adopt the automatic control, PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision
of weaving. Reduce the operation difficulty of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools have large capacity, saves the steel wire waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function.
* Break line stop alarm function.
* Fixed length function.
* Fault detection capabilities.
* Three color alarm prompt.
Type 2: Middle Speed Braiding Machine
1. Number of spindles: 24 spindles
2. Speed: 30 rpm/min
3. Spindle capacity: 7.5kg
4. The weaving structure is the same as that of ordinary braidnng machines: around the eight-character handover
5. The operation mode is different from the high-speed knitting machine: high-speed - circular rotation, medium speed - handover around the eight-character
6. Admiralty medium speed knitting machine is equivalent to an upgraded version of ordinary knitting machine
The difference with normal speed braiding machine machine:
A:The positions of the spindles are different: the old-fashioned-spindles are stuck on the guide plate, the golden bell is at medium speed-the spindles are stuck on the corrugated toothed plate (the structure is changed, the machining accuracy is obviously improved, which lays the foundation for the speed increase, and now the speed is one of the ordinary knitting machines of Hualong. times, Hualong ordinary: 14.25 rpm, Admiralty medium speed: 30 rpm)
B:Different capacity and line capacity: Hualong ordinary--2.5kg, Admiralty medium speed--7.5kg
C:Different clutch braking methods: Hualong ordinary - friction surface braking, Jinzhong medium speed - torsion spring braking
Summary: Compared with ordinary knitting machines, the mechanical structure changes, which promotes the increase of speed and the increase of spindle loading capacity.
7. The structure of the spindle is different from that of the high-speed knitting machine, and it is the same as that of the ordinary knitting machine.
8. The standard knitting disc of Jinzhong medium-speed knitting machine adopts frequency conversion motor, and customers can choose servo motor, but they need to pay extra
9. The tractor uses a servo motor
10. The lubrication method adopts oil pump lubrication. No. 220 gear lubricating oil is stored in the oil tank. The oil supply power comes from the gear slot, and the gear slot is controlled by PLC. Pump out the fuel tank and hit it on the liquid flow valve. The liquid flow valve is equipped with a pressure gauge for real-time signal feedback.
Type 3:Normal Speed Braiding machine
1. Feature:
* The machine has high speed compared with the ordinary steel wire knitting machine efficiency is a little more than 1 times.
* Easy operation, high precision. This machine all adopt the automatic control, PLC+man-machine dialogue interface and servo motor. Greatly improve the precision of weaving. Reduce the operation difficult of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools large capacity, saves the steel waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function
* Break line stop alarm function
* Fixed length function
* Fault detection capabilities
* Three color alarm promp
Package & Delivery
Company
We are a professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machines, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high-speed type, and super high-speed type, etc..Our braiding machines are horizontal types that enable heavy tensile strength.
FAQ 1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
1) Stainless steel wire
2) Copper coated steel wire
3) Cotton Wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you the correct machinery:
1. What outer diameter of the hose you want to braid?
2. Wire diameter
3. Application
4. Do you have any requirements about production efficiency?
