Film Laminating Machine Dry Film Auto Cutting Laminator
| US$106,000.00-110,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GH-A640
Classification
Cold Laminating Machine
Application
Aluminium Plate, Film Material, Soft Board
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
Matt Film
Plastic Film Mulching Modes
Hot Laminating
Performance
Anti Ultraviolet Erosion
Weight
1360kg
Power
AC380V
Maximum Machining Size
660*660mm
Minimum Machining Size
250*250mm
Transport Package
Standard Package, Wooden Package, Vacuum Package
Specification
L2200*W1540*H1910mm
Trademark
xinguanghui
Origin
Shenzhen
HS Code
8486309000
Production Capacity
100sets/Year
Packaging & Delivery
Package Size
240.00cm * 175.00cm * 211.00cm
Package Gross Weight
1460.000kg
Product Description

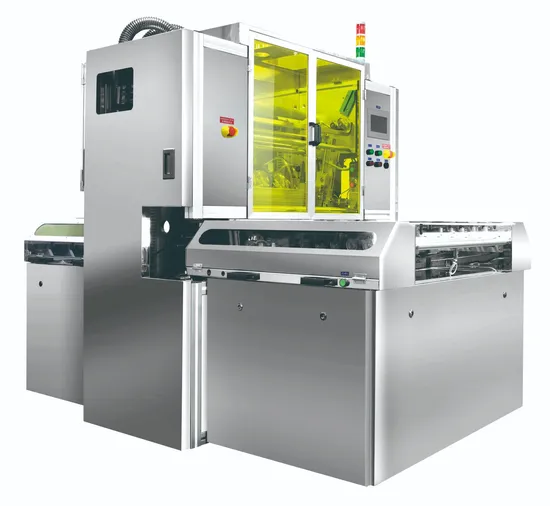

Product Description GH-A640 Dry Film Auto Cutting Laminator
| Model number | GH-A640 |
| Current source | AC380V 3 Phase 15KW 50HZ |
| Pressure | 5-8kgw/cm2 |
| Outline dimension | L2200*W1540*H1910mm |
| The effective width of the film pressure | 650MM |
| Baseline length | 250~660mm |
| Baseline width | 250~660mm |
| Baseline thickness | 0.1~3.3mm |
| Dry film size | |
| Membrane width | 250~650mm |
| Film thickness | 15~76μm |
| Membrane diameter | external diameter 200mm |
| Control method | PLC+human-computer interface |
| Hot pressure | Ø 78mm*760mm |
| Heating method | Inductive heater |
| Number of hot pressing rollers | 4 |
| Pressure membrane speed | velocity range 0~5.5m/minMan-machine interface is set arbitrarily. |
| Film pressure temperature | SSR+PLC temperature control room temperature ~130ºC |
| Main material | SUS304Mirror stainless steel. |
| Pressure membrane pressure | 2-6kg/cm2(adjustable) |
| Vacuum grip device | Five-section operation width setting |
| Vacuum pump | 2.2KW(3HP) |
| Vacuum suction disc range | 9 "~13 ",14 "~17",18"~21",22 "~25 " Silicone wheel Ø 40m/m,Stainless steel roller Ø 31.5mm P=74mm |
| Structure | Host body mobile type, convenient for dry film replacement |
| Before dew copper | 0.0~49.9mm |
| After dew copper | 0.0~12.9mm |
| Brass error | ±1.0mm |
| Board edge error | ±1.0mm |
| Exhaust | 40CM(caliber Ø 4") |
| Weight of equipment | About 1,360 kg |
