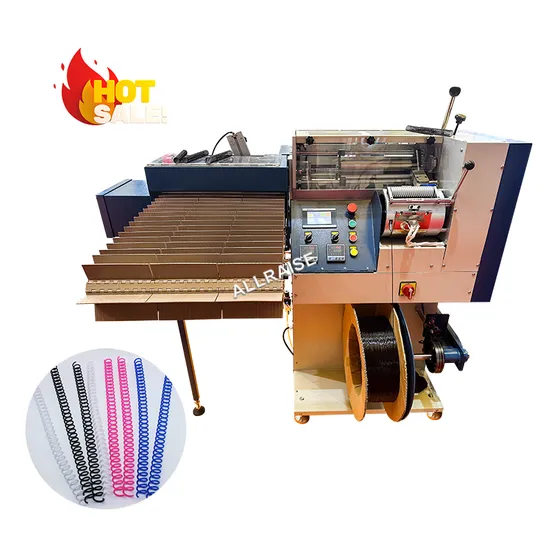

Automatic Spiral PVC Coil Forming Machine Plastic Coil Making Machine

Product Description

Automatic Spiral PVC Coil Forming Machine Plastic Coil Making Machine for Book Binding Plastic Spiral Coil Forming Machine
Product Parameters

Product Name	Plastic Coil Forming Machine
Model	OR-JQ25
Plastic coil diameter	6~25mm (bigger is possible)
Coil length	From 140mm ~450mm
Air supply	6~8 bar
Max forming speed(cycles/min)	0.46m/s
Machine Weight	585kg
Dimension	1.45* 1.2* 1.4m
E.G: diameter 18mm, 1 min 2s can make 456 loops=38 loops x 12pcs

Product features
1.It forms high quality plastic coil from plastic filament. This is achieved through the use of three axles pressing the filament against the forming mandrel as the coil is formed. 2.Other coil former only use two axles to press against the mandrel. This can cause "wobble" and produce coil that is not uniformly round, especially on larger sizes. 3.Three axles pressing the filament form perfect coil 4.Simple & fast on-screen machine setup 5.Can cut the end of the coil with oblique shape which can insert into the book easily, also make it easier to use the formed coil on automatic plastic coil binding machine.
