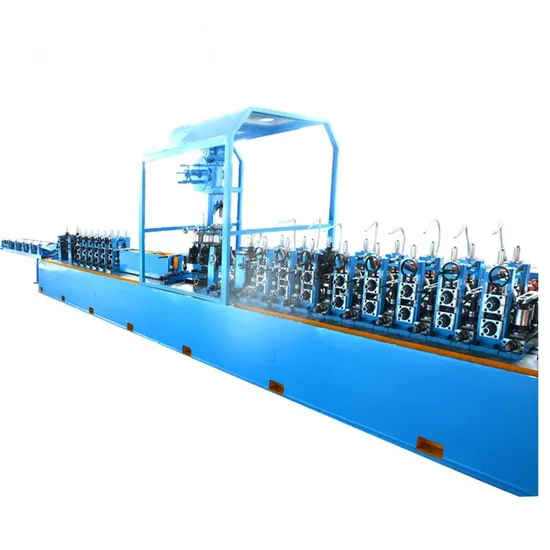

ERW Straight Seam High Frequency Welding Machine to Make Square Tube

Product Description

Product Description

Product Parameters

Model	Diameter of welded tube(mm)	Wall thickness of welded tube(mm)	Speed of tube welding(m/min)	Power of main motor(kw)	High frequency power(kw)
ZG16	8-25	0.25-1.0	30-100	30	60
ZG25	8-32	0.35-1.3	30-100	45	100
ZG32	13-50.8	0.5-2.0	30-90	110	150
ZG50	20-63.5	0.6-2.5	30-90	160	200
ZG60	25-63.5	0.8-3.0	20-80	185	250
ZG76	25-80	1.2-4.0	20-70	200	300
ZG90	32-90	1.5-4.5	20-60	110x2	400
ZG115	38-115	2.0-5.0	20-60	160x2	400
ZG165	80-165	2.0-6.0	15-50	200x2	500
ZG219	90-219	3.0-8.0	15-50	250x2	600
ZG273	185-273	4.0-10.0	15-40	250x1 185x2	800
ZG300	165-355	4.0-12.0	15-30	250x2 200x2	1200

Production Process

UNCOILER
360°rotary hydraulic-pressure expanding tight,which insure steel coil feeding alternatively and make steel strip go into accumulator freely
ACCUMULATOR
Overview:it has two kinds of accumulator for optional.usually big line use horizontal type,and small line use vertical type.
Forming part
Mainly roughly mill-forming steel strip and controlling weld seam
Sizing part
Mainly fine shaping pipe after welding and controlling size accuracy
Turkey's head
mainly used for straightening of finished pipe roughly online
Cold saw cutting
This numerical control cold cutting flying saw, with internationally advanced performance and all servo control, is suitable for online moving high-speed cutting of
Application
