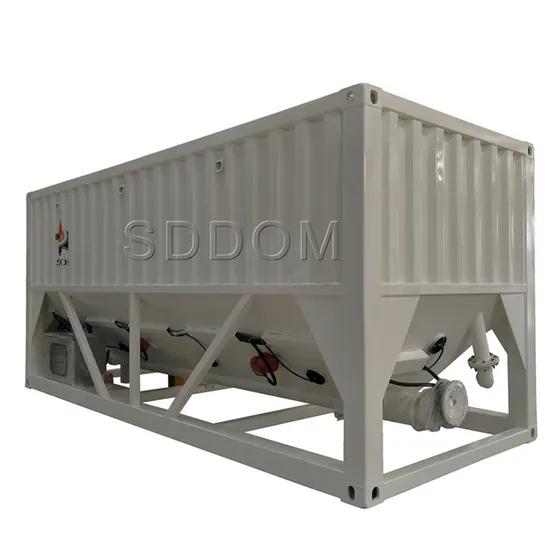

35 Ton Horizontal Mobile Cement Storage Silo for Bulk Cement
| US$24,615.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS27B
Machining Process
Powder
Structure
Cylinder Type
Productivity
27m3
Feeding Height
Customized
Certification
ISO9001: 2000, CE
Condition
New
Color
According to Customer′s Request
Volume
27m3
Model
Container Silo
Size
6058X2438X2591mm
Inlet Pipe
100mm
Air Compressor
1 Unit
Oil-Wol Vibrator
6 Units
Upper Level Sensor
3 Units
Lower Level Sensor
3 Units
Pressure Relief Valve
1 Units
Control System
Siemens
Transport Package
Container
Specification
6058x2438x2591mm
Trademark
SDDOM
Origin
China
HS Code
8474900000
Production Capacity
10sets/Month
Product Description
35 ton horizontal mobile cement storage silo for bulk cement Patent No. ZL201420493942.3CE Certificate No. EC.1282.0E140523.SDMQS69
| Introduction |
The cement silo is delivered complete with cement discharge,screw conveyor for transport of cement at the bottom of the silo,cement injection,grids for cement inlet,top hatches,electric external motor vibrators,self cleaning dust filter,standard silo equipment,lifting devices for easy transportationand control unit.Container silo is same size with 40 feet container. It is in fully welded construction.Complete silo system assembled on a common flat rack hook container.Alternatively the silo can be delivered mounted on a bogie trailer or a flat rack trailer.Designed for easy flowing materials such as Portland cement with a bulk density of 1.13 tons per cbm.
Features | Steel material , anti-rust and anti-corrosion, waterproof and moisture-proof. Long working service life. |
| No need of foundation and easy to move. | |
| High reliable working performance. | |
| Leading professional designer and manufacturer. | |
| We accept customized order, can design and manufacture according to customer's special requirement. |
| Parameter |
| Type | Container Silo | ||
| Material | Carbon Steel, Stainless Steel | ||
| Capacity | 27m3 /35 ton | ||
| Weight | 8.4t | ||
| Dimension | 12192*2438*2591mm | ||
| Shipping | Frame | ||
| Main parts of Container Silo | |||
| Name of Part | Item | Features | |
| Vibrating Bin Aerator | Qty | 24units | |
| Dust Collector | Cover | Stainless | |
| Type | Air jet type | ||
| Pressure Relief Valve | Cover | Stainless | |
| Positive pressure | 280 to 1000mm H2o | ||
| Negative pressure | -20 to -120 mmH2o | ||
| Air compressor | Qty | 1 unit | |
| Power | 3kw | ||
| Rotating Level Indicator | Qty | 12 units | |
| Screw Conveyor | Diameter | 273mm | |
| Power | 111030mm | ||
| Length | 5090mm | ||
| Capacity | 45t/h | ||
| Control Cabinet | Electric Parts | SIEMENS | |
| Work Way | Auto | ||
| Remark: All the silos can be customized according to your requirements. | |||
| Product show |
| working on site |
| packing and shipping |
