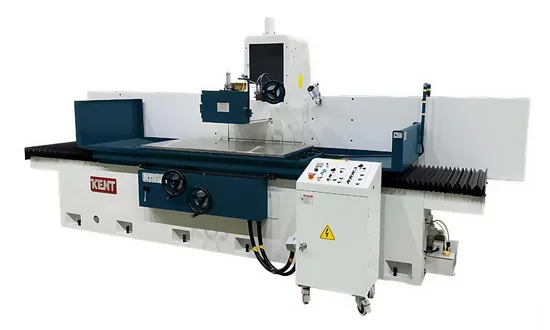

Kent 715 Wm2 1500*700mm High Precision 3 Axis Automatic Process Down and Left Servo Control Surface Grinder Grinding Machine

Product Description

Product Description
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
General Specification
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Machine Equipment
A full-supported double-V structure design is adopted to the workbench, equipped with Turcite-B and a manual scraper to ensure excellent smooth operation and grinding accuracy under load.
X-axis movement is hydraulic driven.
- The Y&Z axis is driven by AC servo motor and C5 ball screw.
Automatic central lubrication.
- Independent Hydraulic System with hydraulic oil cooler design, prevent oil temperature from rising, thermal deformation and the impact of vibration on the machine.
- The flanged cartridge type spindle is supported by P4 super precision angular contact ball bearings.

- Magnetic separator with 120L tank for effective cooling and rinsing. (Optional)
- KENT electro magnetic chuck.
Power supply = DC 110 volt, Single-phases, 50 Hz /60 Hz.
- KENT Y&Z axis digimatic gage.(Optional)

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Standard Equipment
Consisting of:

Granding Wheel Flange	Flange Removal Tool	Balance Table
Balance Rod	Grinding Wheel (Φ355*38*Φ127)	Tool Set
Machine to Adjust Sizing Block	Complete Document	Acceptance report According to DIN 8632

(Please note that standard accessories may vary depending on the specific model selected.)
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Product Parameters

Granding Range	mm	1500*700
Cross Travel	mm	760
Longitudinal Travel	mm	1600
Size of Electro-Permanent Chuck	mm	1500*700
Distance Table to Spindle Center	mm	600
Table Lode incl. Magnetic Chuck	kg	1400
Longitudinal Table Speed	m/min	2~28
Infeed Cross Axis (50Hz / 60Hz)	mm/min	1500/1500
Infeed Vertical Axis (50Hz / 60Hz)	mm/min	300/300
Grinding Wheel Dimensions	mm	Φ355*50*Φ127
Grinding Spindle Drive	hp(kW)	10(7.5)
Variable Speed of Grinding Spindle Motor	rpm	1500/1800
Machine Weight	kg	8500
Floor Space	mm	6200*2700

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Company Profile
About Our Company:
KENT Industry has been a distinguished leader in the realm of precision grinding machines since 1966. Our name shines brightly as a symbol of 'technology', 'innovation', and 'reliability'. Through tireless dedication to research and development, we have ushered in a new era for Taiwan's machinery industry. Our premier product lineup features surface grinders, CNC surface grinders, gantry-type surface grinders, cylindrical grinders, disc grinders, vertical machining centers, and gantry-type machining centers. With a presence that spans the globe, more than 150,000 of our machine tools have been sold worldwide, seamlessly integrating with numerous enterprises. KENT harmonizes its storied heritage with a visionary future, committed to ingenious precision and craftsmanship. By embracing digital technology management, we are transforming into an intelligent factory of the future.
KENT Machinery Co., Ltd. is a distinguished subsidiary, fully established within the National Hangzhou Xiaoshan Economic and
Technological Development Zone, under the esteemed umbrella of the KENT Industrial Group,
a globally recognized brand with over fifty years of expertise in the manufacturing of machine tools in Taiwan.
KENT remains steadfast in its commitment to
the foundational values of 'technology, innovation, and reliability' inherited from its parent company. We adhere to a quality policy centered on 'customer benefit', with a mission to 'deliver superior quality products and contribute to China's economic development', thereby fostering industrial growth throughout the region. Zhejiang KENT carries forward the legacy of innovative design and a meticulously refined manufacturing process from its parent company. With over 30,000 KENT machine tools making a substantial impact on the Chinese industrial sector, we have earned the trust and praise of our valued clients.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our Advantages
Why Choose Us? Discover the Excellence.....
Since 1996, KENT has been dedicated to producing top-of-the-line machinery, earning a reputation for quality and reliability. Experience High Efficiency, Outstanding Cost Performance, and Exceptional Production Value with Our Machines. Explore our surface grinding machines and beyond, celebrating over 60 years of innovation and excellence.Immerse yourself in unparalleled precision and craftsmanship...
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The Exhibition
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Quality & Accuracy Testing
We have professional testing equipment to help test the quality and accuracy of products...
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Packaging & Shipping
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q1:Can we visit your factory before order?A: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick you up at the station or airport if needed .
Q2:What's your main products of your company?A: We specialized in all kinds of machine tools,such as Surface Grinding Machine, CNC, Milling machine, Lathe Machine,Lathe Feeder Machine and so on.Q3:Can you provide customized machines?A: Yes, we can design and manufacture according to your specific requirements.Q4:Do you have professional engineers?A: Yes,we have professional engineers and designers.Q5: Does your company provide professional training?A: Yes, we provide training and teaching or use video teaching.Q6:How can I choose the most suitable machines?A: You can contact our customer service, and please provide your product details and requirements, then we will help you choose the most suitable machine based on your information.Q7:What is your terms of delivery?A: FOBQ8:What is your terms of payment.A:TIT 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.Q9:How about your delivery time?A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q10: Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q11:Can you provide product samples?A: Yes, we can provide samples according to the drawings, but the customer needs to pay for the cost of the samples.Q12:What industry are your machines used in?A:Automobile parts industry,Electronic Equipment Industry, Home appliance industry, and so on.
