CNC Gantry Moving Plate Drilling Machine

Product Description

Applicable Industry:
Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. and large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.

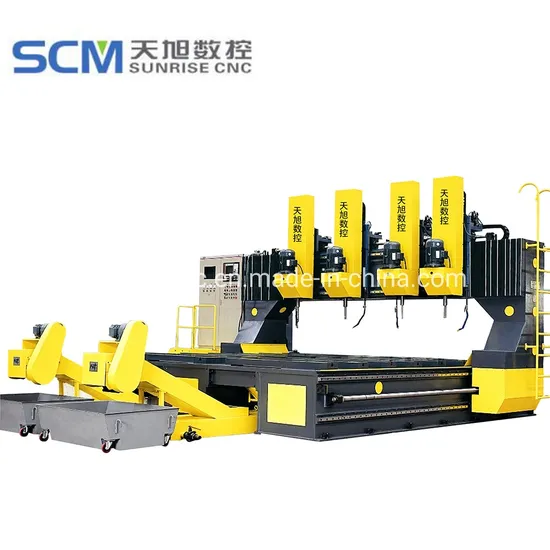

This equipment consists of lathe bed work table, movable gantry, longitudinal slide carriage, numerical control slide board, drill power box, automatic chip cleaner and circulation cooling system, electrical system etc.
Product feature:
1. Servo slide drilling unit heads, with the function of drilling holes, reaming, chamfering, milling of groove, can work together, or work separately.
2. Automatically find pot to dill holes in X,Y axis. Spindle rotation speed and feed velocity are stepless adjustment.
3. T-groove is set on lathe bed, using pressure plate to clamp workpiece.
4. Equipped with the edge finder device to find the center of workpiece.
5. Programming software based on WINDOWS with CAD, fast and convenient programming, and visual previewing.
6. Automatic chip removal, coolant circulation cooling.
7. Key machinery, hydraulic pressure, electric components all famous brands.
8. First choice equipment of tube plate drilling in heat exchange, chemical & mechanical industry.
9. Controlled by PLC system; Shown by LCD screen of LENOVO computer.
Specifications:

Model			TPLD2020	TPLD2525	TPLD3030
Max. workpiece size (mm)			2000x2000	2500x2500	3000x3000
Max.thickNess (mm)			200
Worktable	Width/distance of T slot		22
Drilling spindle	Quantity		One or more (By customer's request)
	Max. diameter of drilling		Φ50mm
	Morse taper of spindle		#4
	Rotating speed (rpm)		120-560 frequency conversion
	Max.feed stroke (mm)		350
	Feeding speed (mm/min)		0-4000Stepless adjustment
	Motor power (kW)		5.5
Positioning precision	X,Y axis		<=0.1mm/ (full length)
Re-positioning precision	X,Y axis		0.1mm/ (full length)
Motor power (kW)	Servo motors	X axis	2x1.8 kW (Dual drive)
		Y axis	1.3 kW
		Z axis	0.85 kW
	Motor of scrap cleaner		0.75
	Motor of cooling pump		0.43
Type of chip-conveyor			Chain-plate type
Quantity of chip-conveyor			1
Chip-removal speed (m/min)			1
CNC system			Spain FAGOR8055 CNC system
Net weight (Kg)			About 16000	About 20000	About 24000
Overall dimensions(L×W×H) (mm)			About 4590×5050×3200	About 5090×5550×3200	About 5590×6050×3200
Other models can be made by customers' request.

Main Components List:

NO.	item	model	Manufacturer
Main electric components
1	CNC system	8055	Spain FAGOR
2	Servo motor	1.8Kw	Japan YASKAWA
	Servo driver	1.8kW
3	Servo motor	1.3kW
	Servo driver	1.3kW
4	Spindle motor	7.5kW	Japan SUMITOMO
5	frequency transducer of spindle	7.5kW	REXROTH or SIMENS
6	low-voltage apparatus		German SIEMENS
7	Business computer	LCD	Lenovo
8	Proximity switch		AUTONICS
Main hydraulic components
1	Main magnetic valve		Italy ATOS
Main mechanical parts
1	ball-screw		Taiwan HIWIN
2	Linear guide	X/Y axis	Taiwan HIWIN
3	Linear guide	Z Axis	Taiwan HIWIN

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
Spare Parts List:

No.	Code Name	Name	Quantity	Remark
1		Air gun	1
2		Tools in Common Use(including:a set of inner hexangular wrench, adjustable wrench, solid wrench)	1 batch
3	Open	Proximity switch	1	AUTONICS
4	Close	Proximity switch	1	AUTONICS
5	5#-4#, 4#-3#, 3#-2#, 2#-1#	Reducing sleeve	1 set
6	Quick change wrench for drill head		1
7	¢18	high speed steel handle twist drill	1
8	¢60	high speed steel handle twist drill	1
9	Connection pole		1
10	¢80		1
11		Upper computerProgram CD	1
12		Standby paint	2 pail	1pail for main color and 1pail for warning color
13		Quality Certificate,Packing List	1 each
14		Instruction manual(mechanical part, electric part and hydraulic part)	2 each
