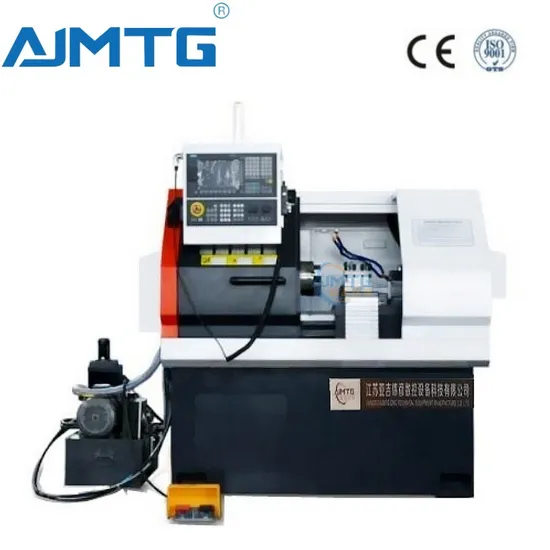

CNC Lathe Machine Ck32L Slant Bed with GSK/Siemens/Fanuc CNC Controller
Basic Info.
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
390/400/460/520/560/660
Transport Package
Fine Wooden Box
Trademark
AJMTG
Origin
China
HS Code
8458990000
Production Capacity
550 Sets Per Year
Packaging & Delivery
Package Size
2300.00cm * 1200.00cm * 2300.00cm
Package Gross Weight
1700.000kg
Product Description
Hello dear friends, many CNC machines exported to Russia, warmly welcome esteemed you for inquiry or putting forward your questions~~~Product Name: Well-sold TCK46A CNC lathe
(1). Brand machine with the 45° Overall high strength cast iron slant bed, smooth chip removal, good rigidity.
(2. )Have the function of tool nose radius compensation, constant speed cutting, chamfering, fixed cycle, thread cutting, etc...
(3). High speed spindle unit(3000rpm).
(4). Precision high-rigidity linear rolling guide.
| Description | Unit | CKS6140X |
| Max.swing over bed | mm | 450 |
| Max.swing over carriage | mm | 200 |
| Max.workpiece length | mm | 650 |
| Travel for X axis | mm | 220 |
| Travel for Z axis | mm | 660 |
| Positioning accuracy for X,Z | mm | X:0.01;Z:0.01 |
| Re- Positioning accuracy for X,Z | mm | X:0.001;Z:0.0005 |
| Rapid feeding | mm/min | 1500 |
| Tool numbers | PCS | 6/8 |
| servo motor of spindle | KW | 7.5 |
| Max.spindle speed | r/min | 3000 |
| Spindle bore | mm | 60 |
| Spindle taper | MT | No.5 |
| Size of square shank tool | mm | 20×20 |
| Interior diameter tools | mm | 25 |
| Overall dimension | mm | 2717×1580×1870 |
| Weight | KG | 3500 |
