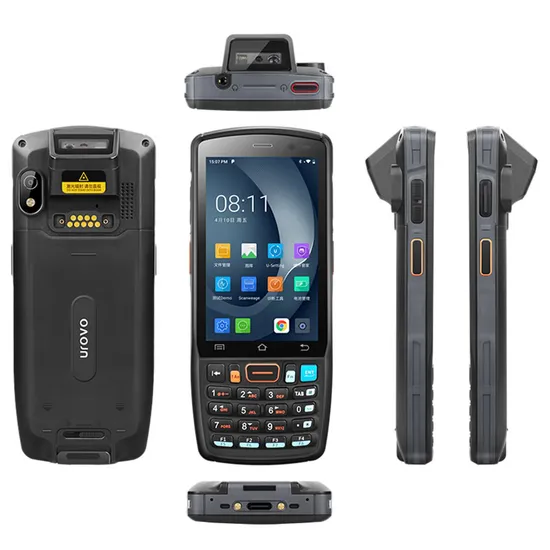

Warehousing Helper Smart PDA Terminal with 2D Barcode Scanner

Product Description

Environmental * Operating Temperature: - 20°C~60°C (-4°F~140°F) * Storage Temperature: -40ºC~70ºC(-40°F-158°F) * Humidity: 5%RH~95%RH (No condensation) * Drop Specification: Device can withstand the impact of multiple 1.5 m drops to smooth cement floor * Tumble Specification: 200 3.2 ft./1.0 m tumbles, meets and exceeds IEC specifications * Thermal Shock: -40°C~70°C(-40°F~158°F ) rapid transition * ESD: ±15 kV air discharge; ±8 kV direct discharge

Model	DT40
OS	Android 9.0
CPU	Qualcomm Octa-Core 1.8GHz
Weight	240g
Display	4.0inch
Memory	2GB RAM+ 16GB ROM 4GB RAM+64GB ROM(Optional)
Battery	3.8V 4500mAh
Expansion slot	256GB
SAM	nonsupport
SIM	Dual SIM Card
2D barcode engine	Zebra SE4710
IP rating	IP67
Drop Resistance	1.5m
Camera	13MP(Rear) and 2MP(Front)
Interface	Type C
3G	WCDMA(B1/B2/B5/B8)
4G	TDD-LTE:B38/B39/B40/B41 FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B19/B20/ B26/B28A/B28B/B66
NFC/RFID	Supported, NXP NFC module
Wifi	802.11 a/b/g/n /ac/d/e/f/h/i/k/r/v/w
BT	BT 4.2 ER/EDR+BLE
GPS	GPS/A-GPS/Beidou/GLONASS/Galileo

DT40 Code Scanner Device Parameters Configuration
* Mobile Platform: Qualcomm Snapdragon450
* CPU: 1.8GHz Octa Core
* Memory: 2GB RAM + 16GB ROM
* O.S.: Android 9.0
* Expansion Slot: Micro SD card extension, up to 128GB
* SIM: 2 x Nano-SIM slots Scan Code Type
* Support international standard 1D/2D bar code;
* Support barcode displayed on screens and colored bar code;
* Support captures contaminated or wrinkled, distorted barcodes. Physical Parameter
* Dimension: 6.48 inch × 2.7 inch × 0.69 inch
* Weight: 240g/8.47oz (include battery)
* Touch Panel: Corning Gorilla Glass
* Display: 4" WVGA TFT-LCD (480 x 800 pixel)
* Notification: LED, Speaker, Vibrator
* Audio: Dual-microphone support with noise cancellation, high quality speaker
* Connection: USB Type-C, 9 Pogo Pin, 3.5mm Audio Jack Data Capture
* Camera: Front-2 MP, Rear-13 MP auto-focus camera with flash LED
* NFC Module: ISO14443 Type A and B; Mifare / FelliCa and ISO15693 cards; Reader mode, P2P mode and Card Emulation Large Capacity Battery
* Battery Capacity: Rechargeable 3.8V/4500 mAh Li-ion battery
* Charge Time: Fully charges in less than 4 hours
* Operation Time: 24+ hours Drop Specification and Waterproof
* IP67 sealing waterproof
* 1.5m drop test passed
* 99.9% dustproof
