-35 to 150 C Portable dry type temperature calibrator for testing thermocouple thermistor or thermometer

-35 to 150 C Portable dry type temperature calibrator for testing thermocouple thermistor or thermometer

Product Details

Product Details

Product Description

Product Description
Product Overview

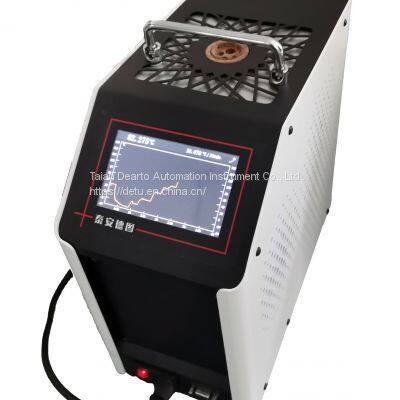

DTG low temperature portable intelligent dry block calibrator, simple operation, light and portable, accurate temperature control,suitable for laboratory and industrial site temperature calibration / measurement; its calibration temperature range can be from -35 ℃ to 150 ℃, the average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level. Widely used in machinery,shipbuilding,chemical industry, food, electricity, medicine and other industries.
FEATURES AT A GLANCE
Operation interface
Aluminum alloy dry temperature block, precise fit, falling smoothly and slowly.And hole diameter can be customized.
Product Paramenters
Model
DTG-140G
DTG-150G
Temperature range
-20℃~140℃
-35℃~150℃
Heat source
Semiconductor cooling and heating
Control method
Touch screen
Display resolution
0.01℃
Standard dry block insertion aperture
Φ4.5,Φ6.5,Φ8,Φ10 When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
Radial uniformity
≤0.2℃
Axial uniformity
Within 30mm from the bottom of the well ≤0.8 ℃
Temperature fluctuation
±0.15℃
Well depth
170mm
Dimensions
330 x 170x 320 mm
Power supply
110/220V,60/50Hz
