Fast Delivery Yokohama Pneumatic Inflatable Ship Rubber Fender Bumper
| US$158.00-13,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
pneumatic fender
Material
Rubber
Shape
Cylindrical
Structure
Floating
Size
2.0*3.0~2.0*3.5m
Accessories
Free
Type
Sling Type/Net Type
Synthetic Tyre Cord
with High Breaking Strength
Certificates
BV, CCS, ABS, Lr
Application
Sts, Stq
Color
Black or as Request
Deivery
with Tray or Basket
Manufacturer
Qingdao Evergreen
Lead Time
Around 25 Days
Customized
Okay
Transport Package
Bracket
Specification
Dia2.0mxEL3.5m
Trademark
Evergreen
Origin
China
HS Code
40169400
Production Capacity
300PCS/Month
Product Description

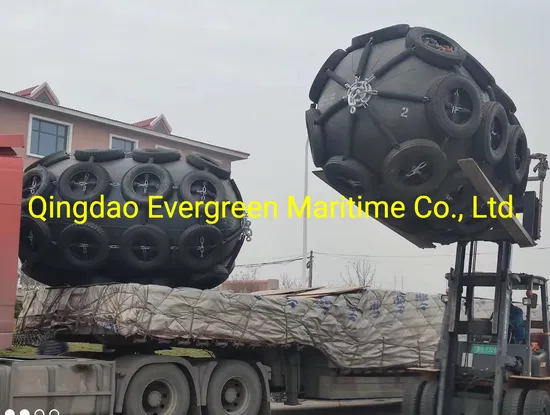

YOKOHAMA TYPE PNE UMATIC FENDER C/W CHAIN AND TYRE After years of hard work and continuous self-improvement, we gain good reputation around clients and also government endorsement. We are the only Qingdao Famous Brand/Shandong Famous Brand in Qingdao city.And we are the only factory passed CCS/BVFactory approval in Shandong province.
Performace table for P50 & P80 Pneumatic Fenders
| Nominal size mm | Pneumatic 50 Guaranteed energy absorption (KN.M) | Pneumatic 50 Reaction force at GEA deflection (KN) | Pneumatic 50 Hull pressure at GEA deflection (KN) | Pneumatic 80 Guaranteed energy absorption (KN.M) | Pneumatic 80 Reactionforce at GEA deflection (KN) | Pneumatic 80 Hull pressureat GEA deflection (KN) |
| Dia x Length | 60% deflection | Tolerance ±10% | 60% deflection | Tolerance ±10% | ||
| 500×1000 | 6 | 64 | 132 | 8 | 85 | 174 |
| 600×1000 | 8 | 74 | 126 | 11 | 98 | 166 |
| 700×1500 | 17 | 137 | 135 | 24 | 180 | 177 |
| 1000×1500 | 32 | 182 | 122 | 45 | 239 | 160 |
| 1000×2000 | 45 | 257 | 132 | 63 | 338 | 174 |
| 1200×2000 | 63 | 297 | 126 | 88 | 390 | 166 |
| 1350×2500 | 102 | 427 | 130 | 142 | 561 | 170 |
| 1500×3000 | 153 | 579 | 132 | 214 | 761 | 174 |
| 1700×3000 | 191 | 639 | 128 | 267 | 840 | 168 |
| 2000×3500 | 308 | 875 | 128 | 430 | 1150 | 168 |
| 2500×5000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
| 2500×5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
| 3300×4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
| 3300×6500 | 1814 | 3015 | 146 | 2532 | 3961 | 191 |
Initial pressure 0.05Mpa. Tolerance between Reation force & Energy absorption: ±10% Weight Tolerance: ±10% Special dimensions can be customized. All the Fittings are Hot-galvanized and Antirust Treatment.
