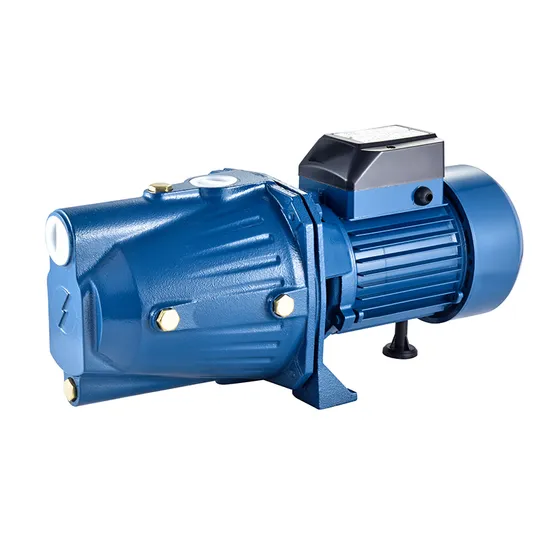

Jet-80m/L/P Large Flow Shallow Well Home Water Supply Electric Self-Priming Surface Jet Water Pump

Product Description

JET-80M/L/P Large Flow Shallow Well Home Water Supply Self-Priming Surface Pump Product Description
INSTALLATION AND USE
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The self-priming JET pumps are designed to pump water even in cases where air is present.As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets,and for the irrigation of gardens and allotments,etc. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
APPLICATION CONDITIONS
• Suction lift up to 8m
• Liquid temperature up to 60ºC
• Ambient temperature up to +40ºC
MOTOR
Insulation ClassB
Thermal protector Continuous service S1
Protection IP44
Two-pole induction motor
Single-phase 220V/50Hz,60Hz on demand Three-phase 380V/50Hz,60Hz on demand
Product Parameters

MODEL	POWER		Q( m3/h )	0	0.6	1.2	1.8	2.4	INLET/OUTLET	N.W	LxWxH
	kw	HP	Q(L/min)	0	10	20	30	40	(Inch)	(kg)	(mm)
JET-60M/L/P	0.37	0.5		35	28	20	14	10	1"x1"	12.5	450x215x235
JET-80M/L/P	0.55	0.75	H(m)	48	39	31	25	20	1"x1"	13.5	450x215x235
JET-100M/L/P	0.75	1		53	43.5	35.5	30	24	1"x1"	14.5	450x215x235

Detailed Photos
Company Profile
Zhejiang MingBa Mechancial&Electrical Co., Ltd. Located in Wenling city of Zhejiang province which is not only the biggest water pumps production base of China, but also the most famous town of pump production all over the world. After 20 years development, our annual production capacity reaches to 1500, 000 sets. MingBa is the leader pump enterprise in Taizhou. Our company established new modernize standard factory plants cover 18000 m3 in wenling eastern industrial areas and is professional for manufacturing submersible and sewage pumps, we are fight for realizing 3, 000, 000 sets production goal.
MingBa is one of the drafting enterprises of National standard for submersible pump. In 2000, we earned the ISO9001: N. We also gained CCC, CE and RoHS certifications. MingBa is be honored with High and New Technology companies by Zhejiang government.
FAQ
Q1: How about the quality?
A: We use high quality raw material for production, and 100% QC in producing process before the goods being packed up. we sincerely expect to work with you for long and stable time.
Q2: What's your warranty?
A: One year warranty, detail as your requirement.
Q3: Could I put my own logo on it?
A: Definitely, we can make your logo after you give us your authorization.
Q4: What's your payment term?
A: 30% deposit before producing, 70% TT against BL copy.
Q5: Can I get a sample to check your quality and how long i can get samples?
A: Definitely,sample will be finished within 7-14 days.
Q6: How about the delivery time?
A: 30-45 days after receipt of deposit.
