1pH Electrical Meter Test with 40 Positions for Energy/Kwh/Electricity/Samrt/Perpaid Meter Accuracy Testing PTC8125D

US$16,500.00-48,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

PTC8125D-40

Max Diameter of Workpiece

2400mm

Mass Scope of Workpiece

2000kg

Type

Universal Testing Machine

Maxcapacity

50-288V

Accuracy Grade

0.05 / 0.1

Load Way

Electronic Load

Loading Method

Static Load

Display

Digital

Control

Computer Control and Manual Control

Weight

1000-2000Kg

Power Source

50-288V

Oil Cylinder Position

Under

The Test Bench Accuracy Class

0.05

Reference Standard Energy Meter

Hc3101b Accuracy Class: 0.05

Output Frequency Range

45Hz~65Hz; Resolution: 0.01Hz

2.9numbers of Calibrated Energy Meter

Transport Package

Standard Wooden Case

Specification

0.05

Trademark

Hanpu

Origin

Zhejiang Jiaxing

HS Code

9030849000

Production Capacity

3000

Packaging & Delivery

Package Size

244.00cm * 77.00cm * 196.00cm

Package Gross Weight

400.000kg

Product Description

Product Description

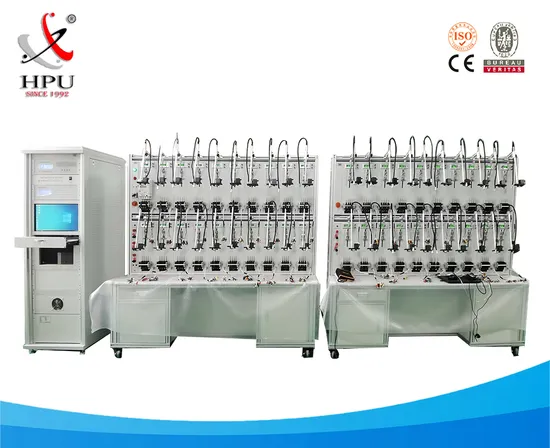

Single Phase Energy Meter Test Bench is accords with the standard of "IEC 521, 1036, 687and 145 for mechanical meters, IEC 62052-11,IEC 62053-11, 21, 22, 23 for static electronic meters. This bench can be used to test single phase energy meter (up to 0.5 class).According to the different requirements of customers such as Meter Manufacturer, and provincial metrology centers, we can provide customized, combined flow design, installation, commissioning, and full-time operation and maintenance services with single-phase, three-phase meter test bench.

Items		PTC-8125M	PTC-8125E	PTC-8125H	PTC-8320D	PTC-8320E	PTC-8320H	PTC-7100
Basic functions	Basic error	○	○	○	○	○	○	×
	Creeping test	○	○	○	○	○	○	×
	Starting test	○	○	○	○	○	○	×
	Standard deviation	○	○	○	○	○	○	×
	Constant test	○	○	○	○	○	○	×
	Meter constant	○	○	○	○	○	○	×
	Influence test	○	○	○	○	○	○	×
	No load test	○	○	○	○	○	○	×
	Max demand test	○	○	○	○	○	○	×
	Repeat test	○	○	○	○	○	○	×
Multi-functions test	Day time error	☆	☆	☆	☆	☆	☆	×
	L/N switching	☆	☆	☆	☆	☆	☆	×
	Communication test	☆	☆	☆	☆	☆	☆	×
	Power consumption test	☆	☆	☆	☆	☆	☆	×
	High voltage	×	×	×	×	×	×	○

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Hanpu, founded in 1992, is a high-tech enterprise integrating R&D, manufactures and sells devices and systems for producing, measuring, testing and calibrating electric/kwh energy meter. Currently, over 400 employees are committed to precision of the highest quality, in total four R&D centers in Haiyan, Suzhou, Ningbo and Xiamen, and has a domestic first-class electric automation R&D team and independent intellectual property rights.Utilities, test laboratories, national metrology center and electric energy meter manufacturers are among our customers worldwide.Professional Service at the decisive moment is important. You can choose different levels of accessibility including on-site and remote support. We offer spare part , maintenance and reliability checks and warranty extensions.
