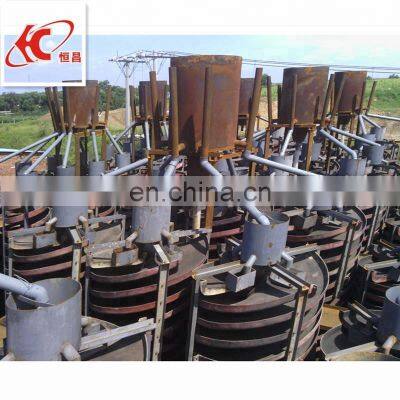

tin chrome gold hematite gravity spiral chute with high recovery

Product Description

Product Description
Products Description
Gravity separation also called gravity concentration, which is a mineral processing method for separating minerals according to different mineral densities. When using gravity separation method, a medium (air, water/heavy liquid or heavy suspension) is essential besides various gravity separation equipment. During the gravity separation process, the ore particles are subject to gravity (if the process takes place in centrifugal force field, centrifugal force is the main force), mechanical forces exerted by the equipment and the force of the medium.The ingenious combination of these forces makes the different density of the ore particles produce different speeds and tracks of movement, and eventually achieve the gravity separation process.
ADVANTAGE:1. Mature gravity separator line for different materials(rich experience on this field from 1992 years, done many projects oversea).We made gold separator line,Iron /Tin/ Aluminum /Titanium /Manganese/ Silver/ Copper separator line and so on.2. Cost Control(Have lots of site experience, from equipments, installation to personnel site working, we can make a most optimal case to you).3. EPC-Turkey Project (We have enough capability to make EPC-Turkey project, which will be convenient for you).
Main equipment list of gravity separator line
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

No.	Item	Brand	Notes
1	vibration feeder	HC	PLS Click Prodcut Name link
2	jaw crusher	HC
3	conveyor belt	HC	depends on the site
4	crusher	HC
5	screen machine	HC
6	ball mill	HC
7	Thickener	HC
8	shaking table	HC
9	spiral chute	HC

Case of gold Tin Iron gravity separator line
gold/wolframite beneficiation plant.In the stage of roughing, we provides a method for the wolframite beneficiation plant. That is using vibrating screen, jig in the first stage of fine slime, then going directly to the process of cleaning.In this gravity Separation stage, we would always apply the processing of multistage jig, multistage shaking table and regrind of middling. That is, after the stage of fine crushing, the qualified mineral will be classified by vibrating screen and then put into the multistage jig. After that the jig gravity rough concentrate is produced. The coarse jig tailings will be reground. The fine jig tailings will be classified by classifier and then put into multistage shaking table. After that the shaking table gravity rough concentrate is produced. The tailings will be discharged into tailings pond. The mineral left on the table will be reground and concentrated. The gravity sand concentrated by jig and shaking table will be concentrated in the process of cleaning.
gravity separation of bariteFor the gravity separation of barite, the process of Henchang is crushing, screening and jigging. Then the high grade (over 80%)concentrate will be produced. Jig is the main equipment for the separation and purification of barite ore, which is energy saving,high efficiency, and environment protection. In the process of crushing, Henchang uses jaw crusher and applies two-stage crushing process. In the process of screening, Henchang uses simple and useful circular vibrating screen, which also have the features of large capacity, high efficiency, and convenient operation. It is very suitable for screening of barite ore. In the process of jigging, Henchang applies two kinds of jigs to respectively separate the coarse and fine granularity of barite material.
Tin Ore Mining ProcessThe density of tin ore is larger than the paragenetic mineral, so the mining process of tin ore apply gravity separation. However, all kinds of Iron oxides exist in those ore, like magnetite, hematite, etc., which cannot be well separated by using gravity or flotation separation. Herein, magnetic separation and flotation separation will be used.
Details Images
JIG MACHINE
the ore particles in the jigging machine are mainly layered by means of the density differences, the bigger the gravity difference is, the higher the gravity separation efficiency is. it is necessary to keep layers with a certain shatter condition, if the material layer is very full and compaction, it will count against the jigging process, prolong the loose condition to improve the separation effect and capability.
BALL MILL
Ball mill is the key equipment for grinding after the crushing process in the beneficiation plant, it is used to grind kinds of materials such as copper ore, gold ore, magnetite ore, quartz, lead zinc ore and other materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type,overflow type etc. What's more, the ball mill can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
SHAKING TABLE
Shaking table which is also called table concentrator, its a gravity separation device for fine mineralsThe shaking table surface is the working platform, the surface’s material types include wood, glass fiber reinforced polyester resin and aluminum alloy, shaker surface with a wear protection layer and providing corrosion resistant layer, greatly prolong the service life.
Packing and delivery
Company Profile
Q: Before you design the flow, what should I let you know?
1.what's your raw material?could you supply us your ore analysis report ?2.what's the size of your raw material?
3.what's the capacity you need?tph or tpd ?
After knowing above, we can design the customized flow for you.
