Chinese Brand Lovol 0.92m3 22ton 120kw Crawler Excavator Fr220e with Cheap Price

Product Description

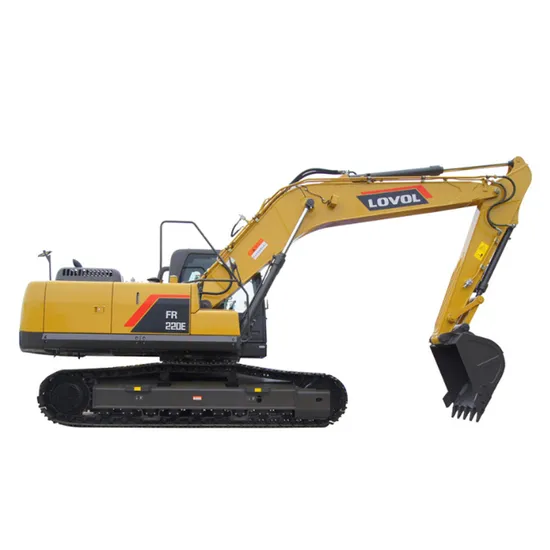

Chinese Brand LOVOL 0.92m3 22ton 120kw Crawler Excavator FR220E with Cheap Price
PRODUCT DESCRIPTION
The FR220E2 excavator uses a high-torque engine with an electronically controlled positive flow control system to make the machine more efficient.
Performance characteristics
Relying on the R&D system of Revo Japan Engineering Center, it has established a solid partnership with internationally renowned companies to continuously optimize and improve the quality and life of parts and components. Engines, pumps, valves, motors, cylinders, controllers, etc. are all first-class in the industry resource of.
The connecting rod is changed from the split type to the integral type, unified the structure of the middle excavation connecting rod, and improves the strength of the connecting rod.
The arm is partially optimized, the structure is strengthened, and the manufacturing process is optimized to reduce welding stress concentration and improve reliability.
Equipped with high-quality mechanical suspension seats to meet the driver's comfort needs, suitable for various working
conditions. The cab that meets the TOPS\FOPS standard makes the operation safer. The new type of seat is used to increase the cushion angle adjustment and seat depth adjustment functions, and the comfort can be adjusted according to the body weight.

Machine parameters			Engine
Total length	mm	9580	model	Isuzu /4HK1
Grounding length (transport)	mm	5085	Type	Pressurized, direct injection, water cooling
Total height (to the top of boom)	mm	3060	Rated power kW/rpm	133/2000
Total width	mm	2980	Maximum torque N·m/rpm	657/1500
Total height (to the top of the cab)	mm	3050	Walking drive
Counterweight ground clearance	mm	1090	Maximum gradeability °	35
Minimum ground clearance	mm	443	Maximum walking speed km/h	5.1
Radius of tail gyration	mm	2880	Maximum traction kN	217
Track ground length	mm	3640	Maintenance filling capacity
Track length	mm	4385	Diesel fuel L	385
gauge	mm	2380	Total hydraulic oil of hydraulic system L	260
Track width	mm	2980	Hydraulic oil tank volume L	220
Track shoe width	mm	600	Engine oil L	20
Tooth height	mm	16	Engine coolant L	34
Machine cover height	mm	2150	Rotary reducer oil quantity L	4
Upper platform width	mm	2700	Travel reducer oil quantity L	5x2
Distance from the center of rotation to the back end	mm	2880	Hydraulic system
Maximum digging height	mm	10190	Maximum flow of main system L	2x234
Maximum unloading height	mm	7260	Maximum pressure of working oil MPa	37.3
Maximum digging depth	mm	6510	Maximum pressure of pilot system MPa	3.9
Maximum vertical digging depth	mm	5980	Slewing mechanism
Horizontal cutting 8′ maximum digging depth	mm	6320	Rotation speed r/min	12
Maximum digging radius	mm	9875	Rotating moment kN·m	65.9
Maximum digging radius on the ground	mm	9690	/
Minimum radius of gyration	mm	2910

COMPANY PROFILE
Shanghai CANMAX Construction Machinery Co., Ltd was funded in 2006, sales office is located in the Shanghai Free-Trade zone, a center of global finance, trading and shipping. Thanks to years of construction machinery industry experience, CANMAX had built a professional team provides customer professional technical support and all-around before& after sales service. Till now, CANMAX had expanded its business to more than 80 countries in Asia, Europe, South America, Africa, Oceania, etc. Adhere to "Honest, strict, share to get" and "Creating value for all customers", We are constantly developing new and excellent products to satisfy customer's demand and to become one of the top one-stop solution suppliers for construction machinery.
CANMAX
CANMAX machinery attended Russia, Uzbekistan ,Philippines, Kenya, Peru Construction Machinery exhibition every year. More and more customer know about CANMAX products and culture. CANMAX will grow together with every customer. From the factory to our customer's destination, we will conduct all-round supervision.We can also help to sign purchase order contracts, test product quality, guarantee timelydelivery, and accomodate special orders.
PER-SALE SERVICE
· 400 customer service centers · user experience day
· golden operator training program
· private customized construction solutions
Service Concept
SpecialSwiftnessPassionLifelong
Service team spreads all over the world, which is professional and passionate and always salutes every customer with full emotion;periodically service our products for customers and provide lifetime maintenance for products within use period to satisfy individual requirement of customer; improve customer satisfaction as well as loyalty and establish professional and swift public praise by a series of all-around and considerate service.
