HD Heavy Duty Curved Sliding Door Operator

Product Description

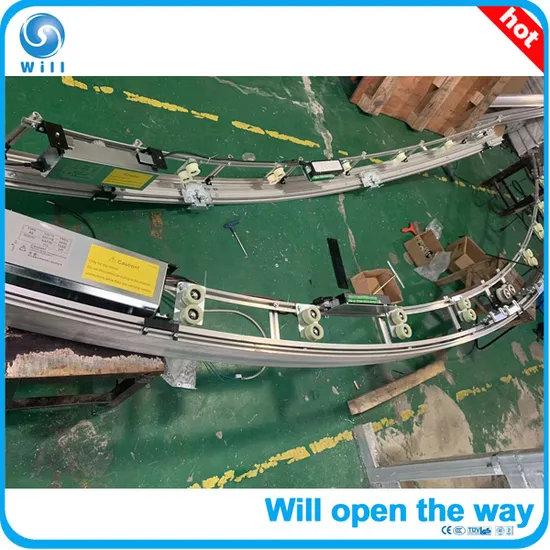

Automatic Door Operator Sliding Door Operator with Brushless Motor Curved sliding door
Feature
10 million times of tests passed, super durable
1. Wide voltage range(AC110-260V)
2. Low power consumption when at work(68W), energy saving when at leisure(3W)
3. Intelligent design, easy to install and adjust.
4. Digital programs, running parameters can be revised easily.
5. Brushless motor, worm-geared, higher efficiency, larger torque and longer life span, fully concealed.
6. Different triggering modes, such as microwave sensor, infrared sensor, mechnical keys, finger printer, firewarning, etc...
Standard Configuration
1. Motor
2. Controller
3. Motor
4. Remote Controllers
5. Basic control module
6. Track
7. Carrier
8. Return Pully
9. Service cover holder
10. End stop
11. Door bracket
12. Belt connection
13. Belt tensioning device
Opetional Parts
Motion Sensor
Lock latch
Battery
Beam safety photocell
Specification
Will 150
Weight of gate Single/Bi-part1X200KG/2X120KG
Width of gate Single/Bi-part900-6100MM
Master Controller32 digital microprocessor
Brush motor/Dunker motor99.5W 60VDC 2A IP50
Opening speed300-700mm/s
Closeing speed300-650mm/s
Max open strength150N
Hold Open Time/Lock0-10S/30s
Height of the rail8CM
Deepth of the rail16CM
Power SupplyAC110V-250V 50/60Hz
Temp15 C to +70 C
Power Consumptionaround 100W
Protection degree of ElectronicIP23
Function Key switch
Off
Automatic
Permanent Open
Partial
Exit only
------------------------------------------------------------------------------------------------------------------------------------------
Additional
Low noise desigh (<70dB)
Warranty: 24months
