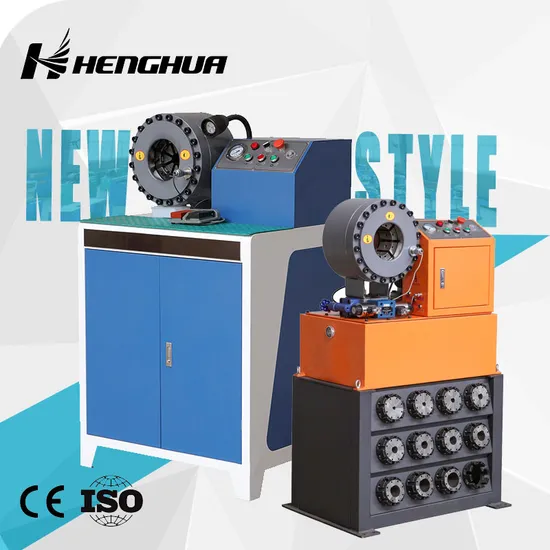

6 Core Patent Dx68 Automatic 1/4"-2" High Pressure Hydraulic Pipe Rubber Hose Crimping Machine Hydraulic Press Hose Crimper

Product Description

Main Technical Feature 1.Efficient, fast pump 2. dies can be changed quickly by QC tool 3. Die set rack,space saving. 4. Precision control device,equipped with signal lamp 5. automatic&semi-auto&button& foot pedal control operated 6.The height of the machine is just right for standing operation
Promise We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.

hose crimping machine
Model	DX68	DX76	DX102	DX150
Crimping range	6~51mm(1/4" ~2")	6~76mm( 1/4~3" )	6~102m( 1/4~4" )	6-150mm(1/4~6")
Max crimping Force	449T	500T	1400T	2500T
Rated Pressure	31.5MPa	50Mpa	31.5Mpa	31.5Mpa
Weight	250kg	300kg	520kg	900kg
Mold Quantity	10 sets	13Sets	16Sets	17Sets
Power	3KW/4KW	4KW	4KW/5.5KW/7.5KW	4KW/5.5KW/7.5KW
Voltage	220V/380V	240V / 380V	380V or customized	380V or customized
Scale accuracy	0.01mm	0.01mm	0.01mm	0.01mm
Overall dimensions	670*490*780mm	730*470*930mm	900*790*1070mm	1030*630* 1160mm

Brief Introduction Model DX68 pipe locking machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. Main Technical Feature Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T Scale accuracy: 0.02mm Rated pressure: 31.5 MPa Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm
Packaging & Delivery
Relatived Rubber Hose Making Machinery Products
1.Hose Cutting Machine
2.Hose SKiving Machine
3.Rubber Hose,Hose assembly
4. Ferrule, Hose Fittings, Flange, Adapter,Clamp,etc
