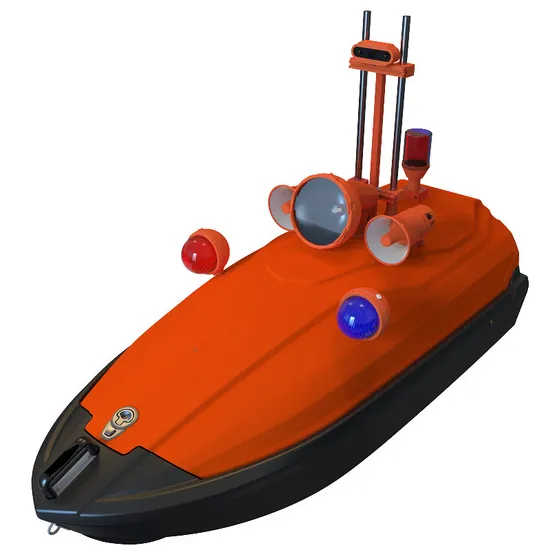

Precise Positioning Flexible Scheduling Remote Control Electric Water Unmanned Ship E-Tow

Product Description

Company Profile
Nestled within the vibrant epicenter of China's manufacturing prowess, Yeaowl Technology Co., Ltd. stands as a beacon of innovation in the tech industry, adeptly merging groundbreaking research, precise production, strategic sales, and exceptional customer service. We deliver all-encompassing power system solutions that set new benchmarks within the industry. Our steadfast commitment to quality is exemplified through our cutting-edge unmanned boats, rescue vessels, patrol boats, hydrological monitoring crafts, and electric surfboards-all celebrated by discerning clients in dynamic markets. Leading our advancements is our power system technical team, pioneering revolutionary research in brushless DC motor technology and achieving remarkable breakthroughs. We expertly design and finesse a diverse range of high-performance motors, providing exceptional service through advanced manufacturing and testing facilities, refined production methodologies, and profound expertise. Supported by an outstanding technical and management team, our products reach a global audience, earning international acclaim for their excellence and garnering high satisfaction.
We take great pride in offering our esteemed clients custom-tailored Original Equipment Manufacturer (OEM) and Original Design Manufacturer (ODM) services. Our specialized R&D and manufacturing expertise is meticulously crafted to meet the unique and diverse demands of our clients, ensuring precision and excellence in every detail and endeavor.
Our unwavering dedication to solving the challenges faced by our clients fuels our innovative spirit, propelling us to continually exceed expectations with unparalleled solutions and cutting-edge advancements.
Product Parameters

Size	175*68*61cm
Speed	28mph/45kpm/24kn
Weight	50kg 75kg(batteries include)
Endurance time	60-85min
Engin Power	2*6KW
Propulsion	Double jet propulsion (V-jet propulsion)
Battery	35A/1.512kwh*2
ESC	36*22*6.5cm 5connectors
Handles	1 front handle 1 back handle (Intergrated into the hull)
Remote Range	600m Use a grip-type remote control 1.5km Use a range-extender remote control

Configuration List

No.	Name	QTY
1	Unmanned Ship	1
2	Tow Rope&Carabiner	1
3	Tolley	1
4	Trolley Strop&Caraniner	1
5	Antenna(4*2.4G/2*915MHz)	6
6	Bateery	2
7	Battery Charger	2
8	Battery Holder	2
9	Battery Connector Collar&Dust Cover	2
10	Rmote Control	1
11	Remote Control Charger&USB Cade	1
12	Wrist Strap	1
13	Connector Grease	1
14	User Guide&Manufacturer	1
15	Certificate of Origin	1

Specification	200*80*40m
Displacement	75kg
Total Weight	84kg
Maximum Thrust	80kg
Remote Control Method	Multiple Remote Control Methods
Top Speed	40km/h
Battery Capacity	1920Wh*2
Remote Control Distance	20km
Maximun Sailing Time	2h

Configuration List

No.	Name	QTY
1	Unmanned Ship Platform	1
2	Battery Pack	1
3	Battery Charger	1
4	Remote Control	1
5	Broadcasting System	optional
6	Sonar System	optional
7	Hydrological System	optional
8	Image Transmission System	optional
9	Radar System	optional
10	Surveying and Mapping System	optional
11	Alarm System	optional

ESC (Electronic Speed Controller)Elevate the exhilarating journey of adventurers while ensuring unmatched safety with our electronic controller, expertly designed with an advanced suite of protective features that redefine safety standards.
High-Temperature Protection Mechanism: When temperatures exceed permissible limits, an automatic speed reduction is meticulously triggered to preserve the equipment with utmost precision, ensuring seamless and secure adventures.
Over-Current Protection Mechanism: Ensures diligent safeguarding of the battery and motor, delivering unyielding safety and dependable performance throughout every thrilling escapade.
Motor Stall Protection Mechanism: In scenarios of excessive load or when obstacles stall the propeller, this ingenious mechanism springs into action, averting equipment damage and ensuring unwavering safety.
Signal Loss Protection Mechanism: Upon remote control signal loss, the controller swiftly enacts protective measures, upholding safety as a priority to ensure a secure ride.
Return Trip Protection Assurance: Secures a generous power reserve for a confident return journey when battery levels deplete, embodying reliability that never falters.

Voltage	Connector	Cooling Method	Waterproof Rating
48V	5	Water Cooling	IP68

Innovative Smart Battery Available in 25A and 35A variants
Ingeniously compact and effortlessly detachable, the Smart Battery ensures swift power transitions, allowing seamless replacements during use and maintaining unwavering power delivery.
This battery boasts rapid charging and clear power indicators. Its cutting-edge Battery Management System (BMS) provides multi-layered protection, elevating safety to unprecedented heights.
*25A Battery:
The innovative 25A battery offers a savvy, economical power solution, perfect for daily aquatic adventures. It skillfully balances weight and endurance, delivering up to 60 minutes of continuous power performance.
*35A Battery:
Crafted for extended aquatic pursuits, the 35A battery provides exceptional endurance, delivering up to 90 minutes of continuous power for prolonged water enjoyment.

Capacity	Weight	Volume
25A/1080Wh	10.2kg	39*34*89cm
35A/1512Wh	12.4kg	39*34*89cm

*Note: Battery life may vary based on speed and platform load during use.Remote Control System
Secure and User-Friendly Handheld Remote Control
Boasting an intuitive design, the robust waterproof casing features ten-speed levels and a precision joystick. Enhanced with dual safety features, it includes a safety-trigger switch and an automatic operation halt when submerged.
Discover a groundbreaking control method with the option of a sleek handheld remote or an extended-range remote for shore-based management, meeting the diverse needs of unmanned boat platforms.
The extended-range remote offers advanced functionalities like GPS positioning, safety fence configuration, and remote video transmission. This empowers shore-based personnel with comprehensive real-time monitoring of the unmanned boat via a display screen.Cutting-Edge Propulsion System JET
Our uniquely engineered V-shaped jet system bestows the unmanned boat with unparalleled agility and nimbleness. Featuring a single inlet and dual jets, it gracefully navigates diverse water terrains-from serene lakes to roaring rivers-executing precise maneuvers with elegance.
This propulsion marvel epitomizes unmatched speed and power, representing the apex of technological advancement. Its formidable dynamics are crafted to propel the unmanned boat to a staggering top speed of 24 knots (approximately 45 km/h). This phenomenal speed enables swift navigation to critical sites for essential missions, such as emergency rescues, environmental monitoring, and groundbreaking scientific research. With this capability, the Remote Control eTow Ship dramatically enhances operational efficiency and response times, establishing itself as an invaluable asset in challenging scenarios.
At Yeaowl Technology Co., Ltd, we are immensely proud to unveil our revolutionary self-water-aspirating cooling system, meticulously engineered for the groundbreaking eTow Remote Control Ship. This remarkable feat of innovation stands as a testament to our relentless dedication to pioneering technology. By providing optimal cooling, it ensures that both the motor and controller consistently operate at their peak, significantly extending the longevity and enhancing the performance of this extraordinary unmanned vessel. Our carefully crafted enhancement not only fortifies the durability of the eTow Remote Control Ship but also elevates its reliability to exceed industry standards. With an unwavering attention to every intricate detail, Yeaowl Technology Co., Ltd cements its esteemed position as a trailblazer, offering unmatched dependability and setting new benchmarks in the maritime industry.

Power	Max RPM	Top Tensile Force	Top Speed
6000W*2	15000RPM	80kg	28mph/45kpm/24kn

*Please note: The exceptional speed of the eTow Remote Control Ship may vary due to a variety of factors, such as the battery capacity utilized, the load on the platform, and the prevailing water conditions. These dynamic elements can result in fluctuations, ensuring a customized and adaptive maritime adventure. This variability not only enriches the user experience but also underscores our dedication to providing a versatile and responsive product, expertly designed to meet diverse maritime challenges and preferences.Exhibition
Testing department
FAQ
Q1:Does your unmanned ship support customization?
A1: Yes, we support customization of colors, dimensions, battery capacity, model, etc., to meet your needs as much as possible.
Q2:Could you send me a price list?
A2: Since we have unmanned boats in stock and offer customization services, any changes in the customized parameters, including quantity, will affect the price. If you need a price list, you can contact me and let me know your requirements. We will then provide you with one.
Q3:Is there a MOQ for your E-tow?
A3: There is no minimum order quantity requirement for our products. However, if you plan to make large - volume purchases or request customization, we will offer you the most suitable price.
Q4:How about your delivery time?
A4: We have unmanned boats in stock. It depends on how many you need. If the quantity is small, we can deliver the goods soon. If it's a large quantity, we need to check our inventory and then give you an approximate delivery time.
Q5:In which fields can your unmanned boats be applied?
A5: Our unmanned boats can be applied in many fields. They can be equipped with a variety of facilities to meet your needs, such as water rescue, water patrol, water expulsion, hydrological monitoring, and so on.
Q6:What's your warranty terms?
A6: One year.
