Rotary Blow Molding System

Product Description

Company Intorduction:
Located in Zhangjiagang City of Suzhou, the Yangtze River Delta, our company has 50million RMB fixed assets, covers an area of 30,000 square meters, with a more than 30 professionals team to design and develop, is a key professional enterprise, which integrates development, research, design, manufacture, technology service and marketing, to manufacture complete sets of wine, beverage and sticky filling equipments.
We are adhering to the principle of "market-oriented, quality as the main line, service as the guarantee and repute as the basis". HY-Filling follows ISO9001:2000 international quality management system, it has established and improved the quality assurance system to ensure the quality and performance of the company's products. The Development department of HY-Filling, with advanced technologies, has more than 30 full-time design and development engineers. HY-Filling's technologies mainly sources from Italy, France, Germany, Switzerland and Japan; furthermore, a set of liquid filling production line with advanced technology and high starting-point has been developed combined with China's basic conditions, its high automation level achieved the one in late nineties. Department of After-sale Service of HY-Filling adheres to service goal of "Customers' needs are urgent, customers' requirements are important, customers' satisfaction is the aim", provides the services of equipment installation guidance, products testing, maintenance and spare-parts supplying, consultation, complaints, regular visit every 24 hours.
HY-Filling has a network of customers for the complete set of beverage bottling lines more than 500 which spreads 30 more domestic provinces, municipalities, autonomous regions and the United States, Britain, Japan, the Middle East, Southeast Asia, Africa, Russia, CIS, South Africa etc. Besides the production and sale of equipments, HY-Filling provides various technical services to help users design equipment layout, answer users' consultation, train users' staff and provide practical operation guidance.
Product Description:

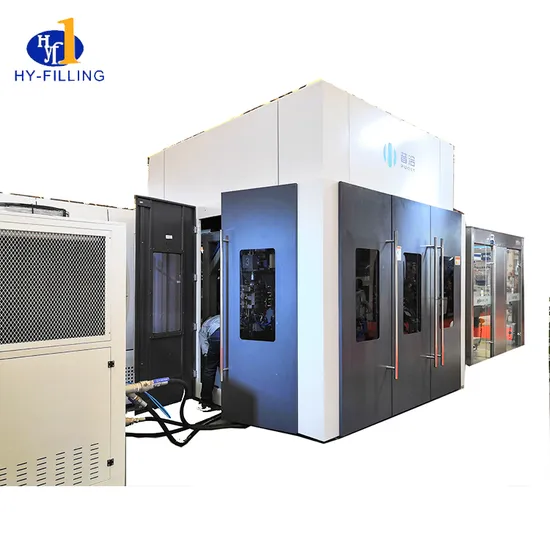

PET bottle -Rotary blow molding machine
1) Rotary blow molding machine
2) CE certificate
3) ISO9000: 2000 Certificate
4) Volume: 200-5L
5) PET bottle
General description
The full automatic rotary stretch blow molding machine is widely used for the blowing plastic container (including hot filling bottle), suitable for the product of water, carbonated beverage or cold bottles.
With the structure of multi-mold in one machine, can complete the actions of preform unscrambling, preform feeding, heating, feeding, stretch, blowing, cooling and bottle conveying etc full automatically. The main components on the machine are of international famous brand. The machine owns the advantage of high automation, reliable and stable operation and low power consumption.
Main composition:
Main parts Brand Remark

PLC system	Siemens S7-300	Germany
Inverter	ABB	Sweden
Touch Screen	SIMENS MP-277	Germany
Main motor	SEW	Germany
Pneumatic part	FESTO	Germany
Power Adjustor	Carlo Gavazzi	Switzerland
Sensor	Carlo Gavazzi	Switzerland
Blow valve	Eugen Seitz	Switzerland
Gas & liquid seal ring	Trelleborg Quad-ring	USA
Button & Switch	SCHNEIDER	France

Electrical/Control components

Circuit Breaker	Schneider	France
Miniature Relay	Schneider	France
Contactor	Schneider	France
Button	Schneider	France
Photoelectric Sensor	Optex	Japan
Magnetic Sensor	Festo	Germany
Touch screen	Weinview	Taiwan
PLC	Mitsubishi	Japan
Power switch	Meanwell	Taiwan
Positioning module	Mitsubishi	Japan
Servo motor	Mitsubishi	Japan
Servo amplifier	Mitsubishi	Japan
Heating module	Semikron	Germany

Valves/Joints

Prime blowing valves	SMC	Japan
Second blowing	Parker	USA
Exhaust valves	Parker	USA
Action valves	SMC	Japan
Throttle	Festo	Germany
Joints	Festo	Germany
Cylinders	Festo	Germany

Mechanical parts

Servo motor reducer	Nevgart	Germany
Chain	KMC	Taiwan
Linear Guides	Hiwin	Taiwan
