Sld1500 Double Ribbon Blending Machine

Product Description

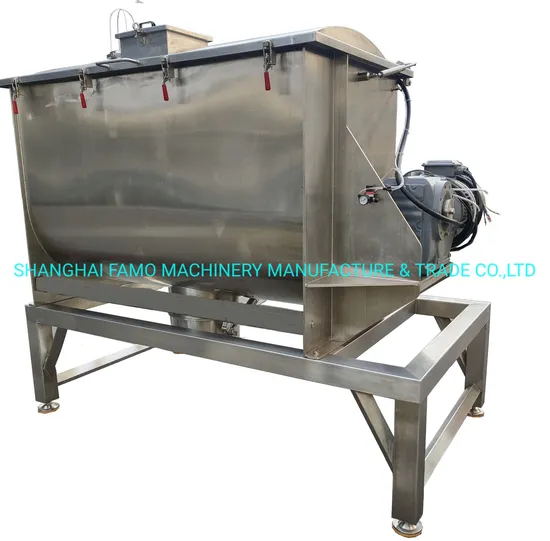

SLD1500 Double Ribbon Blending Machine
Description
The Horizontal Ribbon Mixer consist of U-Shape tank, spiral and drive parts. The spiral is dual structure. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing. Our DP series Ribbon mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made as open in order to cleaning and change parts easily.
Main features
MF-RM series mixer with Horizontal tank , single shaft with dual spiral symmetry circle structure.
The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add liquid device according the customer's needs. Inside the tank there equipped the axes rotor which consist of, corss support and spiral ribbon.
Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center. The valve is arc design that assure no material deposit and without no dead angle when mixing. Reliable regula- seal prohibit the leakage between the frequent close and open.
The disconnected ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.
This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat
Main Technical Data

Model	SLD80	SLD200	SLD300	SLD500	SLD1000	SLD1500	SLD2000
Effective Volume	80L	200L	300L	500L	965L	1376L	1856L
Effective volume in Cubic Foot	2.8CF	7CF	10.6CF	17.6CF	34CF	48.6CF	65.6CF
Fully Volume	108L	284L	404L	692L	1286L	1835L	2475L
Turning Speed	35rpm	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Total Weight	180kg	250kg	350kg	500kg	700kg	1000kg	1300kg
Total Power	2.2kw	4kw	5.5kw	7.5kw	11kw	15kw	22kw
Total Length(TL)	1230	1370	1550	1773	2394	2715	3080
Total Width(TW)	642	834	970	1100	1320	1397	1625
Total Height(TH)	1540	1647	1655	1855	2187	2313	2453
Barrel Length(BL)	650	888	1044	1219	1500	1800	2000
Width(BW)	400	554	614	754	900	970	1068
Height(BH)	470	637	697	835	1050	1155	1274
Tank Radius(R)	200	277	307	377	450	485	534
Power Supply	3P AC208-415V 50/60Hz

Deploy List

No.	Name	Model Specification	PRODUCING AREA,Brand
1	Stainless steel	SUS304	China
2	Motor		Taiwan TECO
3	Reducer		Taiwan Yu Sin
4	Electromagnetic valve		Taiwan SHAKO
5	Cylinder		Taiwan Airtac
6	Switch		Wenzhou Cansen
7	Circuit breaker		Zhengtai
8	Emergency switch		Zhengtai
9	Switch		Zhengtai
10	Contactor	CJX2 1210	Wenzhou CHINT
11	Assist contactor		Wenzhou CHINT
12	Heat relay	NR2-25	Wenzhou CHINT
13	Relay	MY2NJ 24DC	Japan Omron
14	Timer relay		Japan Fuji
