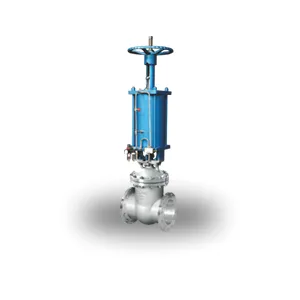

Actuator Operated Casting Steel API Standard Valves/ Parallel /Slide /Wedge Gate Valves

Product Description

Company Profile Multi-Valve Technology Limited is one professional industrial valve factory located in Wenzhou, China, was established in 1997. At our esteemed establishment, we hold several prominent accolades including API 6D, API 607, API 6FA, CE, and ISO certificates. These certifications not only attest to our commitment to quality but also ensure that our products adhere to international standards.
Furthermore, we take pride in being an approved vendor for ADNOC and OXY, esteemed companies that recognize our excellence in delivering top-notch products and services. This approval further exemplifies the trust and confidence that renowned organizations place in our offerings.
Our extensive range of valves caters to a wide spectrum of requirements, encompassing diverse industrial sectors such as oil and gas, petrochemical, power generation, water treatment, and many others. Our comprehensive product portfolio includes ball valves, gate valves, globe valves, check valves, butterfly valves, safety valves and specialty valves, all engineered with the utmost precision and reliability.
What distinguishes us from our competitors is our unwavering commitment to customer satisfaction. We understand the importance of providing tailor-made solutions that meet the unique demands of each client. Our team of highly-skilled engineers and technicians collaborate closely with our customers, ensuring that our valves are custom-designed to their specific needs.
We take great pride in our state-of-the-art manufacturing facilities, equipped with cutting-edge machinery and technological advancements. Our production process adheres to strict quality control measures, ensuring that each valve undergoes rigorous testing and inspection, guaranteeing its superior performance and longevity.
We firmly believe that our products have the potential to greatly benefit your esteemed organization. By selecting our valves, you can be assured of exceptional quality, reliability, and durability, all of which are essential in the demanding and competitive business landscape.
Product Description Product name: Gate Valve

Specification:
Size: nps2"~nps48"
Pressure:cl150~cl2500
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 etc...
Type: Rising Stem, BB, FB, OS&Y
Operation: Normal Handlewheel Gear Operated,Pneuamtic Operated,Electric Operated or Hydraulic Operated.
Suitable Temp:-29~425ºC
Suitable Media:Water/Steam/Oil
End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)
Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system
Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection: ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc
Features
1. Small flow resistance. The medium channel inside the valve body is straight, the medium flows in a straight line, and the flow resistance is small.
2. Less effort when opening and closing. It is compared with the globe valve, because whether it is open or closed, the direction of movement of the gate is perpendicular to the direction of medium flow.
3. Large height and long opening and closing time. The opening and closing stroke of the gate is relatively large, and the lifting is carried out by the screw.
4. Water hammer is not easy to produce. The reason is the long closing time.
5. The medium can flow in any direction on both sides, easy to install. Both sides of the gate valve channel are symmetrical.
6. The structural length (the distance between the two connecting end faces of the shell) is small.
7. Simple shape, short structure length, good manufacturing technology and wide application range.
8. Compact structure, good valve rigidity, smooth passage, small flow resistance, stainless steel and hard alloy sealing surface, long service life, PTFE packing, reliable sealing, light and flexible operation.
Detailed Photos

Certifications

Packaging & Shipping
Product Parameters
