High Efficiency Pet Plastic Juice Oil Bottle Stretch Blow Molding Machine

Product Description

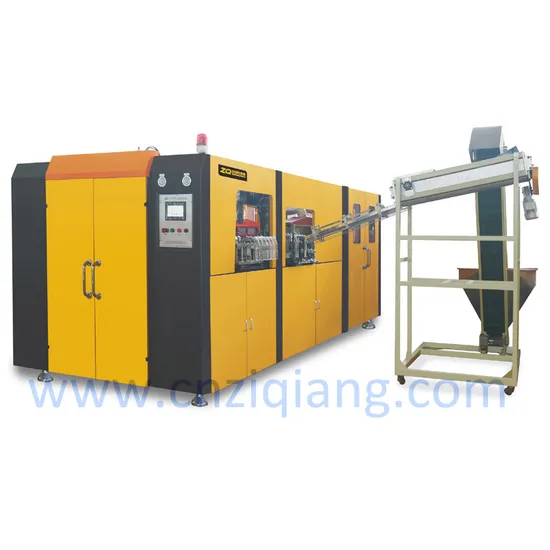

High Efficiency PET Plastic Juice Oil Bottle Stretch Blow Molding Machine
Max: 5000ml, 2 Cavity, 1200-1500 Bottles/hour.
ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L, 2.0L, 5L, 10L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 8000BPH(6-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
High Efficiency PET Plastic Juice Oil Bottle Stretch Blow Molding Machine,equipment information.

TYPE	ITEM	ZQ-B5000-1	ZQ-B5000-2	ZQ-B5000-4	ZQ-B10L-1
CONTAINER	Number of cavity	1cavities	2cavities	4cavities	1cavities
	Output	650-800 pcs/hr	1200-1500 pcs/hr	2000-2200 pcs/hr	400-500pcs/hr
	Max.container volume	5L	5L	5L	10L
	Max.neck diameter	45-80mm	45-80mm	45-80mm	45-80mm
	Max.container diameter	180mm	180mm	180mm	220mm
	Max.container height	350mm	350mm	350mm	400mm
ELECTRICAL SYSTEM	Number of lamp	24pcs	36pcs	60pcs	36pcs
	Max.heating power	22kw	36kw	60kw	36kw
	Installation power	22kw	60kw	100kw	40kw
	Actual power consumption	18kw	22kw	36kw	28kw
AIR SYSTEM	Operatating pressure	7-9kg/cm²	7-9kg/cm²	7-9kg/cm²	7-9kg/cm²
	Low pressure consuming	1200Ltr/min	1600Ltr/min	2600Ltr/min	1600Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	1200-1600 Ltr/min	2600-3000 Ltr/min	4500-5000 Ltr/min	1600-2000 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10ºC	10ºC	10ºC	10ºC
	Consuming	3600kcal/hr	4600kcal/hr	6600kcal/hr	5600kcal/hr
	Flow rater	20Ltr/min	30Ltr/min	45Ltr/min	30Ltr/min
MACHINE	Machine dimension	3.0x2.1x2.1(m)	4.3x2.1x2.1(m)	5.6x2.1x2.1(m)	4.3x2.0x2.0(m)
	Machine weight	2.3ton	4.0ton	5.5ton	2.8ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
