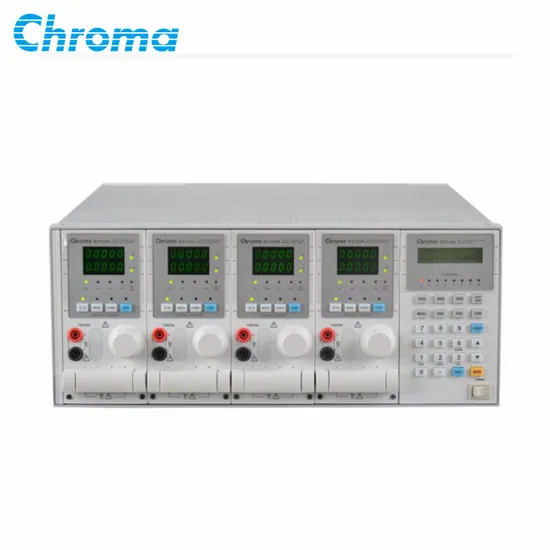

Chroma 6314A 6312A Programmable DC Electronic Load with 63313A 63310A Module

Product Description

Product Description
Model 6310A series
characteristic
Power range: 200W, 100W x 2 (dual),
30W & 250W,300W,350W,
600W,1200W
Voltage operating range: 0~600V
*Highly compatible with 6310
Up to 8 channels can be accessed in the same chassis, suitable for multi output switching
Power supply testing
A load module of up to 1200W can meet high current requirements
High power application requirements
Application that can synchronously execute multiple sets of electronic load modules
* Constant current, constant resistance, constant voltage, and constant power operation modes
Dynamic load operation frequency can reach 20kHz
*High speed load current change rate, load rise/fall change rate
0.32mA/µ s~10A/µ s
Low input impedance, high current load even at low voltage
Ability (63123A: 0.6V@70A )
* Can simulate instantaneous response of power load and measure output in real time
Users can edit 100 sets of test parameters through the front panel
And state storage
*High/low limits can be set according to the test parameters,
Automatically determine whether the test results exceed the set specifications
Digital I/O control
Multi segment 16 bit high-precision voltage and current measurement circuit
Overcurrent (OCP) testing function
Remote control testing function
Short circuit test
*Self testing function upon startup
*Protection function: Over power, over current, over temperature protection
Overvoltage and reverse polarity alarm
RS-232C, USB (optional), GPIB (optional) control interface
1,Multi-channel control
The 6314A/6312A main control module units are equipped with a standard RS-232C control interface
And the optional GPIB and USB control interfaces, in the application environment of the automatic testing system, enable
Users can transmit data and control load module testing through these control interfaces.
In addition, the control function of 6310A can control multiple sets of loads through the shelf, which can be targeted at a single input
The A/D or D/D converter test can simultaneously test up to 8 units at a time, providing more effective
Faster testing plan.
2,6310A and 6310 are compatible
The 6310A series load module can be inserted into the 6310 series chassis for use. Remote control
In terms of commands, except for the newly added functions in the 6310A series, the commands for other functions are completely the same
Allow users to use the old testing system without rewriting the remote control program
Unified.
Note: The 6310 series module cannot be used with 6314A&6312A shelves.
3,LED load simulation
LED power supply is a current source, therefore it has an output voltage range and a fixed output current. In the LED power supply
In testing, the following methods are commonly used:
1. Use a real resistor as the load.
2. Use traditional electronic loads to operate in constant resistance (CR) mode or constant voltage (CV) mode.
3. Use real LEDs in series as the load.
However, these testing methods all have their drawbacks and cannot fully meet the testing needs of LED power supplies.
