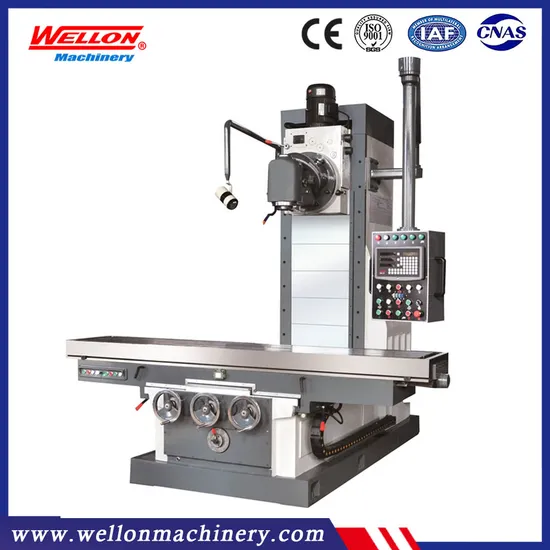

Bed Type Milling Machine X718 Swivel Head Univertical Milling

Product Description

Product Description
Bed Type Milling Machine X718 Swivel Head Univertical Milling
Detailed Photos
Product Parameters

Technical parameter:

Model	units	X718
Table size	mm	2800x500
Table travel(X,Y)	mm	2500x1020
Distance from spindle to table surface	mm	385-1540
Distance from spindle to table surface	mm	0-1160
Distance spindle to table surface	mm	0-1090
Number/width/distance of T-slot	mm	4-20-100
Max.load of table	kg	5000
Feed speed	mm/min	22.4-560
Rapid feed speed	mm/min	1650
Z axes feeding	mm/min	11.2-280
Z speech axes feeding	mm/min	825
Spindle taper		7:24 ISO50
Spindle speed range	rpm	36-1340
Spindle speed step	steps	12
Distance from spindle axis to column	mm	900
Spindle motor power	kw	7.5
Overall dimension	mm	3020×3000×3000
Machine weighe	kg	9000

Standard accessories:
Mill collet chuck kits
Tool holder ISO50
Horizontal mill arbor support
Draw bar
Foundation block
58 pcs Clamping kits
Control penal box
Worktable automatic power feed
Coolant system
Work lamp
Lubricating system
Tools and tool box
Optional accessories:
Universal dividing head F11-200A
Rotary table HV-14
Machine vise QMN16200
3 axis DRO
Spindle safety protection
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
