Customize Injection Products Plastic Parts Dustbin Basket and Storage Mold

Product Description

Customize Injection Products Plastic Parts Dustbin Basket and Storage Mold Product Description
We are a professional manufacturer of high quality sorting trash can mould. The functions of the products are pedal type, car type, household upper and lower type, medical type and ordinary type. The mould of 32L, 45L, 60L, 80L, 120L, 240L and other different capacity sorting garbage cans are manufactured. Beryllium copper is inlaid on the top of the core and the edge of the cavity, which speeds up the cycle and improves the production efficiency of sorting garbage cans.
Key points of mould quality for classified garbage cans
Short injection molding cycle and high production per unit time
CAE software is used to analyze the temperature distribution in the molding process, and the cooling system design is strengthened at the highest temperature, so as to effectively shorten the cooling time and speed up the cycle.

The forming system has strong stability and high yield.
The design of runner system is reasonable and the yield is high. The hot runner adopts German heating element and has stable balance.

The wall thickness of the product is uniform and non eccentric, and the service life of the mold is long
The mold assembly is accurate, the machining dimension is good, and the design of the locking guide mechanism is reasonable

It is suitable for injection molding of low MFI plastic, and the product is durable
The die has good strength, balance of force and low pressure of molding system. It is suitable for injection molding with low melt index. The product has strong toughness, resistance to fall and anti-aging.
Product Parameters

Mould Name	Garbage can mould /dustbin mould
Product size	500x430x720mm
Cavity	1 cavity
Mold size	850x720x1050mm
Suitable machine	SE-580T
mold material	P20
Injection system	Hot runner
Mold ejection system	Ejector plate and exhaust
Mold cycle time	48S
Mold life	800000 shots
Delivery time	60 working days
Mold features	Fast speed, long life

Properties Strength - it needs to be strong and durable, and can be used to hold organic chemical polymer materials such as paint.
Static and dynamic loading capacity requirements.
Sealing performance - ensure the quality of paint and no leakage during transportation.
Stacking - saves storage space and is easy to transport.
Antistatic agents - prevent dust and dirt.
UV protection - as a basic requirement for storage and transportation.
Filling paint temperature requirements.
Reaction to chemicals - test the reaction of paint barrels to various chemicals, hopper shall be solvent resistant and can be safely applied to all paint loading.

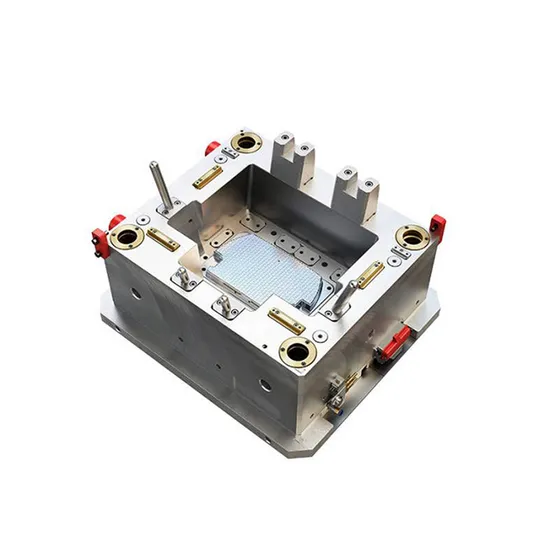

Detailed Photos
Final Product
