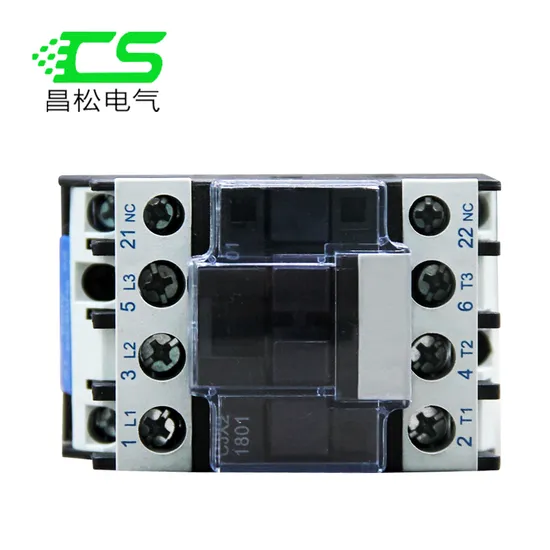

Contactor LC1 Cjx2 Series AC Contactor 220V Coil AC Contactor Factory

Contactor LC1 Cjx2 Series AC Contactor 220V Coil AC Contactor Factory

US$2.30 1 Piece (MOQ)

Basic Info.

Model NO.
CSCJX2-1801
Phase
3
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
630A
Type
Ac Contactors
Transport Package
Standard Export Packing
Specification
LC1-D
Trademark
Changsong
Origin
Zhejiang, China
HS Code
8536490000
Production Capacity
50000PCS/Year

Product Description

CJX2 series AC contactor are used for controlling 3-phase motors and generally for controlling power circuits,and for many other applications such as isolation, capacitor switching and lighting.

Model CJX2-09 CJX2-12 CJX2-18 CJX2-25 CJX2-32 CJX2-40 CJX2-50 CJX2-65 CJX2-80 CJX2-95
Number of the contacts 3P+NO / 3P+NC 3P+NO+NC
Rated conventional heating current (A) AC-1 20 20 32 40 50 60 80 80 110 125
Rated operational current (A) 400(380V) AC-3 9 12 18 25 32 40 50 65 80 95
AC-4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
690(660V) AC-3 6.6 8.9 12 18 21 34 39 42 49 49
AC-4 1.5 2 3.8 4.4 7.5 9 12 14 17.3 21.3
Rated insulation voltage V( AC) 690 690 690 690 690 690 690 690 690 690
Power of controlled 3-phase cage motor (AC-3) kW 230(220)V AC 2.2 3 4 5.5 7.5 11 15 18.5 22 25
400(380)V AC 4 5.5 7.5 11 15 18.5 22 30 37 45
460V AC 4 5.5 7.5 11 15 22 25 37 45 45
690(660)V AC 5.5 7.5 9 15 18.5 30 33 37 45 45
hp 200V AC 3 5 7.5 7.5 10 15 15 20 25 30
240V AC 3 5 7.5 10 15 20 20 25 30 30
460V AC 5 7.5 10 15 20 25 30 40 40 50
600V AC 5 7.5 10 15 20 25 30 40 40 50
Operating frequency (operations/h) Electrical AC-3 1200 1200 1200 1200 600 600 600 600 600 600
AC-4 300 300 300 300 300 300 300 300 300 300
Mechanical
Electrical life (1*104 operations) AC-3 100 100 100 100 80 80 60 60 60 60
AC-4 20 20 20 20 20 15 15 15 10 10
Mechanical life (1*104 operations) 1000 1000 1000 1000 800 800 800 800 600 600

AC coil Coil voltage (V) (50Hz,60Hz,50/60Hz) 24,36,42,48,110,127,220,230,240,380,400,415,440,480,600
Operation range Operation voltage (85%~110% ) Us
Drop-out voltage (20%~75% ) Us
Coil power 50Hz In-rush (VA) 70 110 110 110 200 200 200 200 200
Sealed (VA) 8 11 11 11 20 20 20 20 20
60Hz In-rush (VA) 80 115 115 115 200 200 200 200 200
Sealed (VA) 8 11 11 11 20 20 20 20 20
Power (W) 1.8~2.7 3~4 3~4 3~4 6~10 6~10 6~10 6~10 6~10
