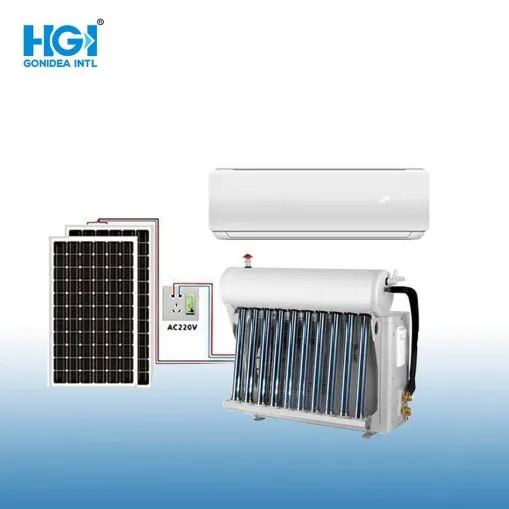

High Efficiency Solar AC/DC Inverter Type and Full Solar Type Wall Split Air Conditioner Tkrf-70gw/Acdc
| US$380.00-580.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TKFR-70GW/ACDC
Cooling/Heating
Cooling/Heating
Power Source
Solar
Power Type
DC
Condition
New
Transport Package
Carton
Specification
Outdoor: 1005*450*820 Indoor: 1195*310*390
HS Code
8415830000
Production Capacity
500000 Sets Per Year
Product Description
AC/DC Inverter Air Conditioner Technical Specifications:| PRODUCT SPECIFICATION SHEET | TKFR-26GW/ACDC | TKFR-35GW/ACDC | TKFR-50GW/ACDC | TKFR-70GW/ACDC | Notes | ||
| Items | Indoor | heat pump | heat pump | heat pump | heat pump | ||
| Indoor | TKFR-26G/ACDC | TKFR-35G/ACDC | TKFR-50G/ACDC | TKFR-70G/ACDC | |||
| Outdoor | TKFR-26W/ACDC | TKFR-35W/ACDC | TKFR-50W/ACDC | TKFR-70W/ACDC | |||
| Picture of Indoor Unit | - | ||||||
| Rated Volt and frequnecy | Ph-V-Hz | 220-240V/50Hz/60Hz, 110-120/60hz | 220-240V/50Hz/60Hz, 110-120/60hz | 220-240V/50Hz/60Hz, | 220-240V/50Hz/60Hz, | ||
| DC | 100-360V MAX 15A | 100-360V MAX 15A | 100-360V MAX 15A | 100-360V MAX 20A | |||
| Rated Capacity | Cooling | W | 2500 | 3500 | 5000 | 7000 | |
| Heating | W | 2500 | 3600 | 5100 | 7200 | ||
| Rated Power Consumption | Cooling | W | 690 | 1030 | 1520 | 2100 | |
| Heating | W | 713 | 980 | 1550 | 2180 | ||
| Rated Running Current | Cooling | A | 3 | 4.7 | 6.9 | 9.3 | |
| Heating | A | 3.1 | 4.5 | 7 | 9.6 | ||
| Max.Input Power | W | 1450 | 1870 | 2860 | 3800 | ||
| Max.Input Current | A | 6.6 | 8.5 | 13 | 17.2 | ||
| SEER Cooling | W/W | SEER6.6 | SEER6.6 | SEER6.6 | SEER6.6 | ||
| SCOP Heating | W/W | SCOP4.6 | SCOP4.6 | SCOP4.6 | SCOP4.6 | ||
| Refrigerant | - | R32 | R32 | R32 | R32 | ||
| Refrigerant Charged | g | 900 | 900 | 920 | 1260 | ||
| Air Flow Volume | m3/h | 650 | 650 | 900 | 1200 | ||
| Noise level(Indoor) | dB(A) | 41 | 42 | 45 | 48 | ||
| Noise level(Outdoor) | dB(A) | 50 | 50 | 52 | 56 | ||
| Connect pipe | liquid tube Diameter*Thickness | mm | ф6*0.5(Length 4 meters) | ф6*0.5(Length 4 meters) | ф6*0.5(Length 4 meters) | ф6*0.5(Length 5 meters) | All copper connecting pipe |
| Gas tube Diameter*Thickness | mm | ф9.52*0.6(Length 4 meters) | ф9.52*0.6(Length 4 meters) | ф12.7*0.7(Length 4 meters) | ф15.88*0.9(Length 5 meters) | ||
| Evaporator and condenser | Fin type | Blue Open Window Hydropphilic Fin(X-type) | Blue Open Window Hydropphilic Fin(X-type) | Blue Open Window Hydropphilic Fin(X-type) | Blue Open Window Hydropphilic Fin(X-type) | ||
| Rows Tubes Circuits | Internal Threaded Pipe ,Doule Row | Internal Threaded Pipe ,Doule Row | Internal Threaded Pipe ,Doule Row | Internal Threaded Pipe ,Doule Row | |||
| Fan Motor | All copper wire manufacturing | DC Brushless | DC Brushless | DC Brushless | DC Brushless | ||
| Compressor Parameter | Compressor Model | ||||||
| Drive Mode | AC/DC | DC | DC | DC | DC | ||
| Type | Rolling Rotor Type | Rolling Rotor Type | Rolling Rotor Type | Rolling Rotor Type | |||
| Brand | GMCC/LAMDA | GMCC/LAMDA | GMCC/LAMDA | GMCC/LAMDA | |||
| Capacity | W | 3080±5% | 3120±5% | 5780±5% | 7740±5% | ||
| Input | W | 780±5% | 805±5% | 1320±5% | 2065±5% | ||
| Rated current(RLA) | A | 5.4±5% | 5.7±5% | 6.0±10% | 9.4±10% | ||
| Dimension | Outdoor Net Dimension | mm | 795*290*555 | 795*290*555 | 795*290*555 | 860*304*733 | |
| Outdoor Packing Dimension | mm | 910*400*630 | 910*400*630 | 910*400*630 | 1005*450*820 | ||
| Indoor Net Dimension | mm | 895*203*300 | 895*203*300 | 1000*240*310 | 1130*245*320 | ||
| Indoor Packing Dimension | mm | 965*275*370 | 965*275*370 | 1075*310385 | 1195*310*390 | ||
| Outdoor Unit weight(Net) | Kg | 38 | 40 | 43 | 55 | ||
| Indoor Unit weight(Net) | Kg | 12 | 12 | 15 | 17.5 | ||
| Loading qty(20/40Q/40HQ) | 90/176/194 | 90/176/194 | 79/160/180 | 50/105/120 | |||
