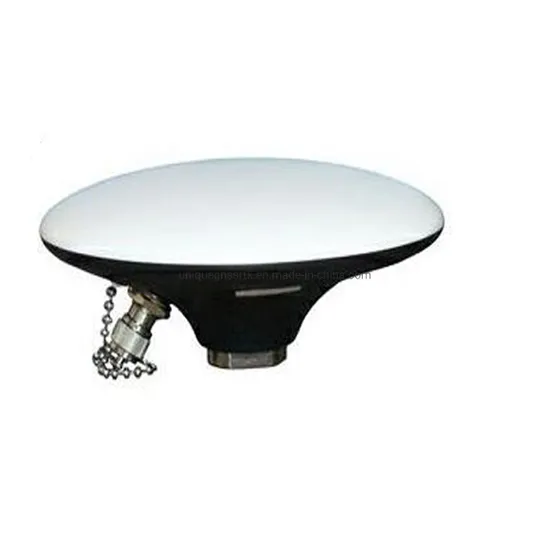

U-Ggb17s Dual Frequency External Gnss Antenna for Surveying

Product Description

Product Description U-GGB17S Dual frequency external gnss antenna for surveying

Features
1. Using multi feed point design to ensure the superposition of phase center and geometrical center which could minimize the influence of measurement error to lowest range
2. High gain of the antenna element and the direction map beam width to make sure the receiving satellites performance of low elevation mask
3. Resistance multipath effects board inside could reduce the measurement error caused by multipath
4. Water proof, shock proof and lightning resistance

Application
Survey antenna is the traditional RTK product standard antenna, can be widely used in land survey, marine survey, channel survey, seismic monitoring, bridge survey, container operation, etc.
Product Parameters

Antenna Specification
Frequency Range	GPS L1/L2, GLONASS L1/L2,Beidou B1/B2/B3
Impedance	50 Ohm
Polarization	RHCP
Axial Ratio	≤3dB
Azimuth Coverage	360°
Output VSWR	≤1.5
Gainn at Zenith	5.5dBi
Phase Center Error	≤2mm
LNA Specification
LNA Gain	40dB
Noise Figure	≤2.0 dB
Output VSWR	≤1.5
Ripple	±1 dB
Drain Voltage	3--18VDC
Current Consumption	≤45mA
Group Delay	≤5 ns
Mechanical Specification
Dimension	Φ146×58mm
Connector	TNC Female
Weight	440g
Base Screw Thread	5/8"-11UNC
Environmental Specification
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +85°C
Humidity	95% Non-Condensing
